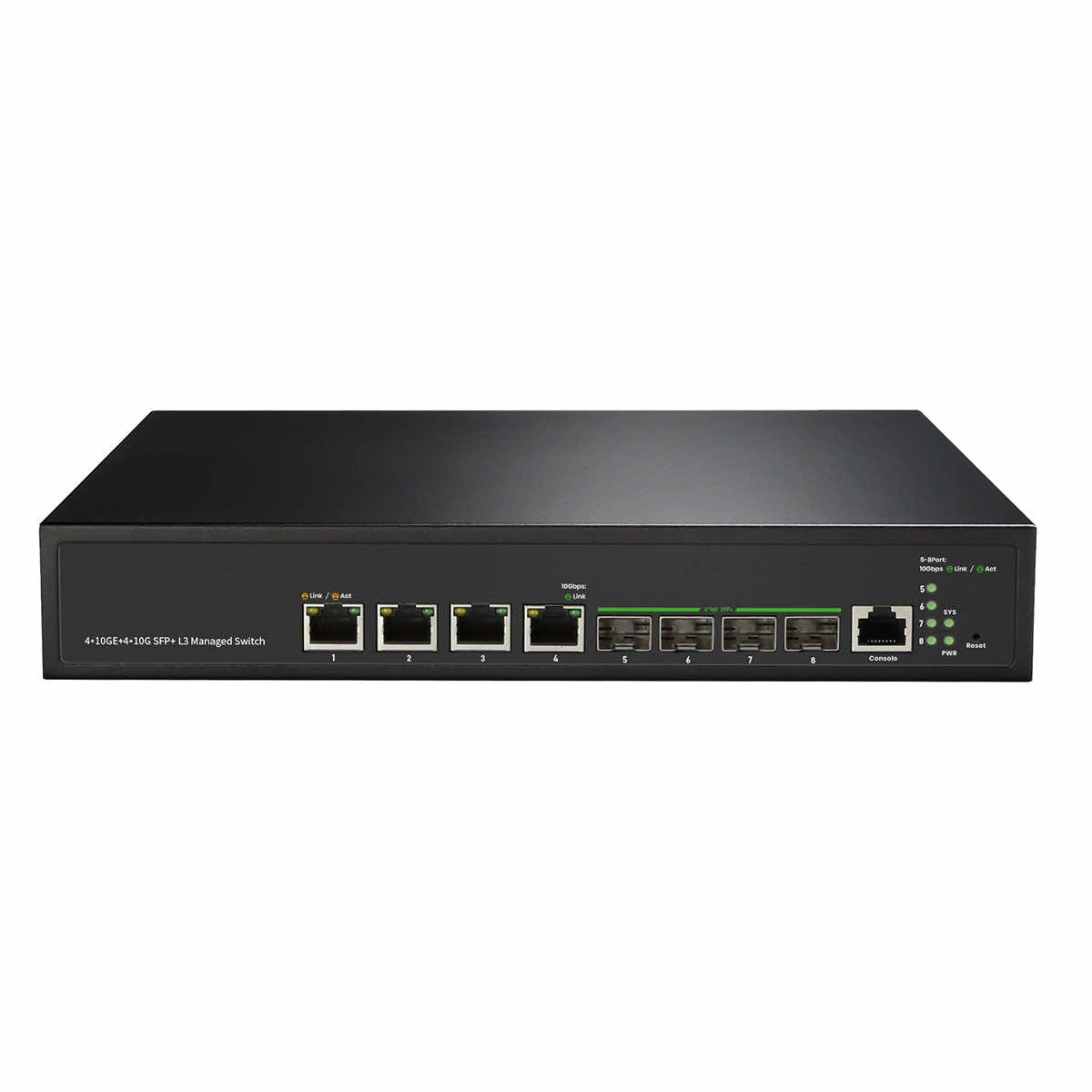

Switch Abart Pro 4x 10GbE RJ45 + 4x 10GbE SFP+ L3 Managed ABP-SW10GM04C04F

The Abart Pro ABP-SW10GM04C04F is an 8-port, manageable L3 10GbE network switch that is ideal for small and medium-sized high-performance computer networks that meet the requirements of advanced users. Switch configuration is greatly simplified thanks to the web-based user interface and management tool. With its rich L3 management features, the ABP-SW10GM04C04F switch is capable of providing high bandwidth to even the most demanding workgroups at the edge of the network, and in small networks it can serve as a backbone for Gigabit switches and high-speed servers. The ABP-SW10GM04C04F switch is equipped with 4 RJ45 10GbE ports and 4 SFP+ 10GbE ports.

The Abart Pro ABP-SW10GM04C04F network switch is designed to meet the networking needs of growing businesses that require a fast, manageable, and stable computer network. It offers a wide range of management and security features. These devices are cost-effective for small and medium-sized businesses, providing ideal solutions for a variety of network scenarios.

Key features

• Supports IEEE 802.3i, 802.3u, 802.3ab, 802.3z, and 802.3x standards.
• It has 4x 100M/1000M/2.5G/5G/10Gbps RJ45 ports and 4x 10G SFP+ ports.
• Supports automatic MAC address learning and auto aging.
• Operates in store-and-forward mode.
• Supports QoS, port mirroring, link aggregation protocol.
• Fully metal housing.

Strong business process capabilities

• With IEEE 802.1Q VLAN support, VLANs can be flexibly divided according to needs.
• Supports voice VLAN, configures QoS parameters for voice data streams, increases the transmission priority of voice data streams, and ensures call quality.
• Supports QoS, three priority modes based on Endpoint, 802.1P, and DSCP, and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
• Supports ACL, according to match rule configuration, action processing, and temporary packet filtering permissions, and provides flexible security access control policies.
• Supports IGMP V1/V2 multicast protocol and IGMP Snooping for multi-station HD monitoring and video conference access.
• Supports VLAN multicast and multicast filtering for efficient data transmission, saving network bandwidth and reducing network load.
• Supports port monitoring by copying copies of monitored port packets to the monitoring port to enable network monitoring.
• Complete security protection mechanism
• Supports quadruple binding of IP address, MAC address, VLAN, and port for packet filtering.
• Supports ARP protection against ARP spoofing and ARP flooding attacks, such as grid spoofing and relay attacks, which are common in local networks.
• Supports IP source protection to prevent illegal address spoofing, including MAC spoofing, IP spoofing, and MAC/IP spoofing.
• Supports 802.1X authentication, which provides authentication for local network computers and controls the authorization status of controlled endpoints based on authentication results.
• Supports port security and stops learning when the maximum number of MAC addresses is reached to prevent MAC address attacks and control port network traffic.

Diverse reliability protection

• Supports STP/RSTP/MSTP spanning tree protocols, eliminating Layer 2 loops and enabling link backup.
• Supports spanning tree security to prevent all forms of malicious attacks on devices in the spanning tree network.
• Supports static and dynamic aggregation to effectively increase link bandwidth, achieve load balancing, create link backups, and improve link reliability.

Easy operation and maintenance

• Supports various management and maintenance methods, such as web management, CLI (console, Telnet) commands, and SNMP (V1/V2/V3).
• Supports HTTPS, SSL V3, TLSV1, SSHV1/V2 encryption for more secure management.
• RMON, system logs, and end-to-end traffic statistics for network optimization and transformation.
• Supports cable detection, Ping detection, and Tracert detection, which facilitates the analysis of faulty network nodes.
• Supports LLDP protocol to facilitate the network management system to check and evaluate the link communication status.
• Supports CPU monitoring, memory monitoring, operational and time permissions, and provides a flexible access control strategy.

Technical specifications

• Power supply AC 100–240 V 50/60 Hz
• Standards: IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x/802.3cb/802.3an
• Ports 4 x 100M/1000M/2.5G/5G/10Gbps, 4x 10Gbps SFP+, 1 console port
• Indicators (LEDs): connection/activity indicators, 10G speed indicators, power indicator, system operation indicator.
• Network Media (cable): 100BASE-TX: Category 5 or higher UTP/STP (max. 100 m), 1000BASE-T: Category 5e or higher UTP/STP (max. 100 m), 2.5GBASE-T: Category 5e or higher UTP/STP (max. 100 m), 5GBASE-T: Category 5e or higher UTP/STP (max. 100 m), 10GBASE-T: Category 6 UTP (max. 55 m) or Category 7 STP (max. 100 m), 1000Base-X:MMF,SMF
• Transfer method: Store and forward
• MAC address table: 16K
• Switching capacity: 160 Gbps
• Packet forwarding rate: 119.04 Mpps
• 12 Mbit buffer
• Jumbo frame: 12 KB
• Dimensions: 271*182*45 mm
• Operating temperature: 0℃ ~45℃ (0℉~113℉)
• Storage temperature: -40℃ ~70℃ (-40℉ ~158℉)
• Operating humidity: 10%~90% non-condensing
• Storage humidity: 5%~95% non-condensing
• Software Features
• L3 Switching Features
• Static Routing (IPv4/IPv6)
• Address Resolution Protocol (Static ARP)
• L2 Switching Features
• 16K MAC Address Table
• 12K Jumbo Frame
• Flow Control (802.3x (Full-duplex), Back-Pressure (Half-duplex))
• Spanning Tree
• IEEE 802.1D (STP)
• IEEE 802.1w (RSTP)
• IEEE 802.1s (MSTP)/16 instances
• Auto Edge Port
• BPDU Filtering
• ERPS
• Link Aggregation
• IEEE 802.3ad LACP
• Static Trunk
• Max 8 Group
• Max 8 Ports/Group
• Traffic Load Balancing
• VLAN
• Surveillance VLAN
• 16 OUI Mode (Auto/Manual)
• Voice VLAN
• 6 OUI Mode (Auto/Manual)
• QinQ (IEEE 802.1ad)
• Basic
• GARP VLAN Registration Protocol (GVRP)
• 4096 Static VLAN/Port-based
• IEEE 802.1Q Tagged-based
• 8 groups Protocol-based
• 256 MAC-based
• Multicast
• Common
• 256 Multicast Groups
• Immediate Leave
• Static/Forbidden Router Port
• Static/Forbidden Forward Port
• 128 profiles Filtering
• Throttling
• IGMP Snooping
• IGMP v1/v2
• IGMP v3 Basic (BISS)
• IGMP v2/v3 Querier
• MLD Snooping
• MLD v1/v2
• - Multicast VLAN Registration (MVR)
• - IPv4
• Quality of Service (QoS)
• Trusted QoS/Priority 8 Queue
• Queue Scheduling
• - WRR
• - WFQ
• - Strict Priority
• - Hybrid (WRR+SP or WFQ+SP)
• Class of Service
• - Port-based
• - 802.1p
• - IP TOS Precedence
• - IP DSCP
• Rate Limit
• - Port-based (Ingress/Egress)
• Access Control List (ACL)
• ACL Type
• - L2/L3/L4
• - 512 MAC-based
• - 512 IPv4-based
• - 512 IPv6-based
• Access Rules
• - 1024
• Security
• AAA Authentication
• 8 TACACS+
• 8 RADIUS
• Authentication Manager
• - IEEE 802.1X
• - MAC Auth
• - Web Auth
• - Guest VLAN
• - Port-based
• - Host-based
• Account Manager
• - Local Authentication
• - 8 Multiple User Account
• - Multi-Level Security (Manager/Operator)
• - Password Recovery Procedures
• Management Access
• - Management VLAN
• - 256Management ACL
• SSL
• - SSLv2
• - SSLv3
• - TLSv1
• WebUI
• - HTTPS
• CLI
• - SSH v1/v2
• Port Security
• - 256 Dynamic Lock
• Storm Control
• - Broadcast
• - Unknown Multicast
• - Unknown Unicast
• Spanning Tree
• - BPDU Guard
• Protected Port (Port Isolation)
• Black Hole MAC
• CPU Defense Engine
• DoS Prevention
• DHCP Snooping (with Option 82)
• Dynamic ARP Inspection
• 256 IP Source Guard
• IP/MAC/Port Binding (IMPB)
• Dynamic VLAN Assignment
• IPv6
• IPv6 Host
• - Auto Configuration
• - Static IPv6 Address and Prefix Length
• - Static IPv6 Default Gateway
• - IPv6 Neighbor Discovery (ND)
• - IPv6 Duplicate Address Detection
• - ICMPv6
• IPv6 Application
• - HTTP/HTTPS
• - TELNET
• - SSH
• - SNMP
• - TFTP
• - Syslog
• - PING
• - DHCPv6
• Management
• CLI
• - 3 sessions Console
• - 3 sessions Telnet (RFC854)
• WebUI
• - HTTPS
• SNMP(v1,v2c,v3)
• File Management
• - Firmware Upgrade/Backup
• - Dual Images
• - Configuration Download/Backup
• - Multiple Configurations
• - TFTP (RFC783)
• - HTTP
• - UART
• Time Management
• - Local
• - SNTP
• Port Management
• - Friendly Port Name (Port Description)
• - Error Disabled Recovery
• Line Management
• - Console
• - Telnet (RFC854)
• - SSH v1/v2
• DHCP
• - Client
• DNS
• - Client
• Software Reset Button
• IEEE (802.3az)
• 32 entries / type RMON Management
• Discovery
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
• Diagnostics
• UDLD
• Mirroring
• - 4 sessions port-based (Many to One)
• Syslog (RFC3164)
• - Local RAM
• - Local Flash
• - 8 Remote Server
• System Diagnostics
• - CPU Utilization
• - Memory Utilization
• - Port Utilization
• - Technical Support Log
• Port Diagnostics
• - Cable Test
• - Fiber Module Status
• Network Diagnostics
• - Ping Test
• - Traceroute
• MIB
• • RFC1213 MIBII (System & Interface groups)
• • RFC2819 RMON I (1,2,3, & 9 groups)
• • RFC1215 Generic Traps
• • RFC1493 Bridge
• • RFC2674 Bridge MIB Extensions
• • RFC2737 Entity
• • RFC3635 Ethernet-Like
• • RFC2863 Interface Group
• • SNMP-Community-MIB
• • SNMPv3-MIB
