The PCIe x4 Quad Port PoE Gigabit Vision Frame Grabber Card is a high-performance, four-port PCIe Gen2 x4 PoE+ card for Gigabit Ethernet image capture and transmission, developed based on the Intel I350 controller. The card provides four independent RJ45 Gigabit Ethernet ports, each supporting a transmission speed of 1 Gb/s transmission speed. Each port is IEEE 802.3at (PoE+) compliant and supports the IEEE 1588 Precision Time Protocol (PTP). The card supports PoE cold start and provides up to 30 W per port with a total power of 90 W, enabling reliable power and data transmission for front-end devices such as industrial cameras, surveillance cameras, and sensors.

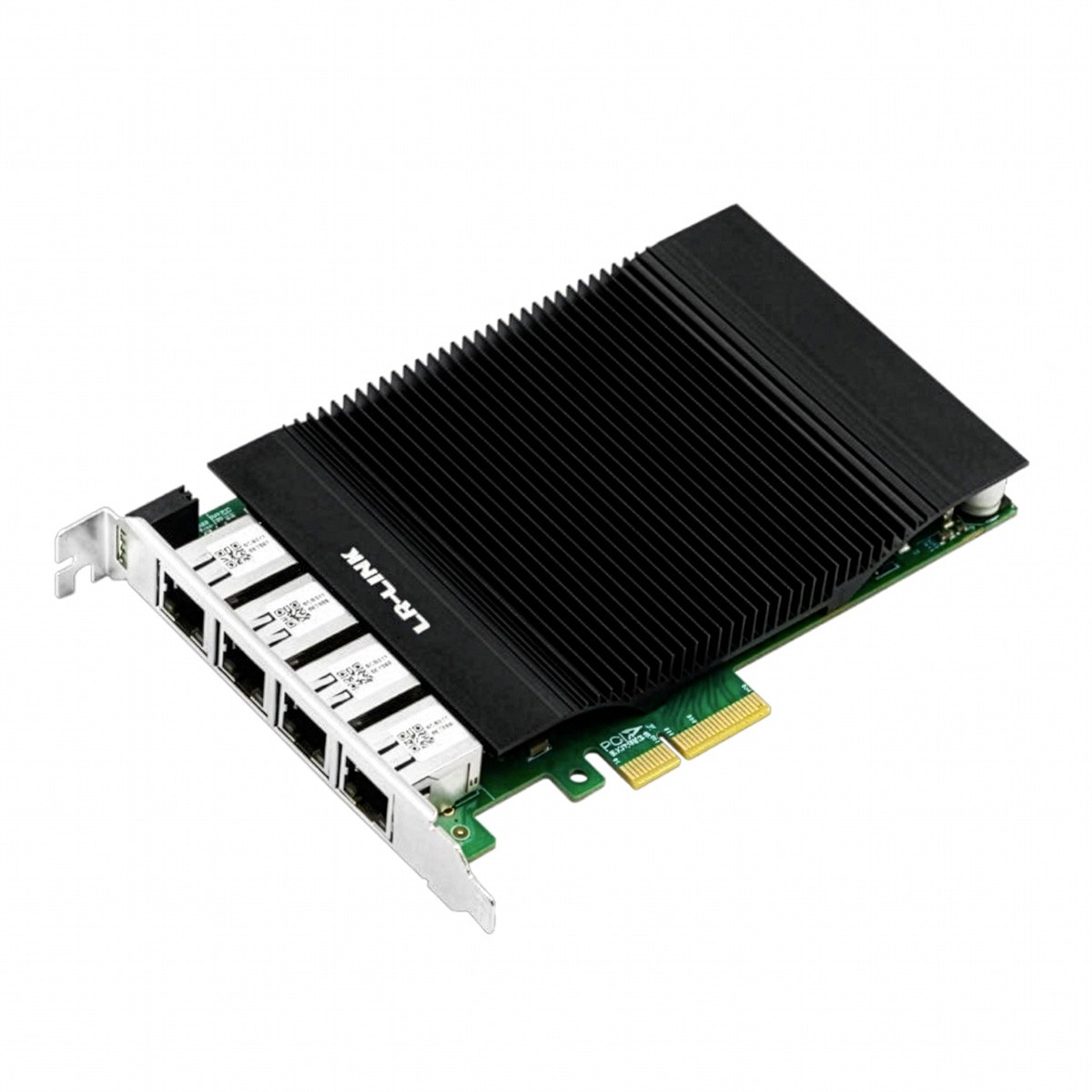

PCIe x4 Quad Port PoE Gigabit Vision Frame Grabber Card
Przedłużona ochrona serwisowa EasyProtect®
Zyskaj nawet 3 lata dodatkowej ochrony dla swojego sprzętu
The PCIe x4 Quad Port PoE Gigabit Vision Frame Grabber Card is a high-performance, four-port PCIe Gen2 x4 PoE+ card for Gigabit Ethernet image capture and transmission, developed based on the Intel I350 controller. The card provides four independent RJ45 Gigabit Ethernet ports, each supporting a transmission speed of 1 Gb/s transmission speed. Each port is IEEE 802.3at (PoE+) compliant and supports the IEEE 1588 Precision Time Protocol (PTP). The card supports PoE cold start and provides up to 30 W per port with a total power of 90 W, enabling reliable power and data transmission for front-end devices such as industrial cameras, surveillance cameras, and sensors.
Each PoE port integrates a recoverable eFuse protection mechanism, offering overcurrent, short-circuit, and fault recovery protection to ensure system stability and device safety. The card also includes PoE software management tools for real-time monitoring and power control, simplifying maintenance.
Optimized for image acquisition, it inherits the low latency and high reliability of the Intel I350 and supports multi-queue parallel processing, traffic shaping, and advanced network management, meeting the needs of machine vision, intelligent surveillance, industrial automation, and traffic monitoring applications.
Specifications
- Controller: Intel I350
- Host Connector: PCIe2.0 x4
- Data rate: 100/1000Mbps
- Number of Port: 4
- Connector: RJ45
- Protocol Support: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3at
- OS Support: Windows Linux
- Power Consumption(Max): 6.01W
- Power Consumption(Min): 2.95W
- Function Support: 1588PTP, PXE|UEFI, Jumbo Frame(up to 9.2KB)
- Jumbo Frame(up to 9.2KB)
- Protection: ESD 8KV, Surge Protection 4KV
- PoE
- Connection ATX 2*2 Power Jack
- Input: 12VDC direct from PCIe slot, 12VDC ATX power jack input
- PoE output: Up to 30W power output per port, UP to 90W total power output for four ports, Protect by recoverable eFuse
- PoE Control/Monitoring: PoE on/off control by Hardware switch, Programmable PoE+ power on/off control, Programmable PoE Management Tool
- Size: 156.7*104.4mm
- Packing List: Internet Network Adapter *1, Cable ATX 2*2 Pin to 4-Pin Power Connector Cable, 150mm*1
The PCIe Vision Frame Grabber network card with PoE and Precision Time Protocol is a specialized device installed in a PCI Express slot, which is used to receive and process images from industrial cameras operating in a network standard. It enables fast and reliable capture of high-resolution video streams with a high frame rate. This is crucial in real-time vision systems. With PoE support, the card can simultaneously transfer data and power cameras using a single Ethernet cable, simplifying installation and reducing cabling. The use of the Precision Time Protocol allows for very precise time synchronization between multiple cameras and other devices on the network, which is important in applications requiring accurate image correlation, such as automatic inspection, measurement, robotics, and advanced industrial automation.
