copy of Promise Pegasus5 R12 Thunderbolt 5 12x 8TB 96TB Hardware RAID
Przedłużona ochrona serwisowa EasyProtect®
Zyskaj nawet 3 lata dodatkowej ochrony dla swojego sprzętu

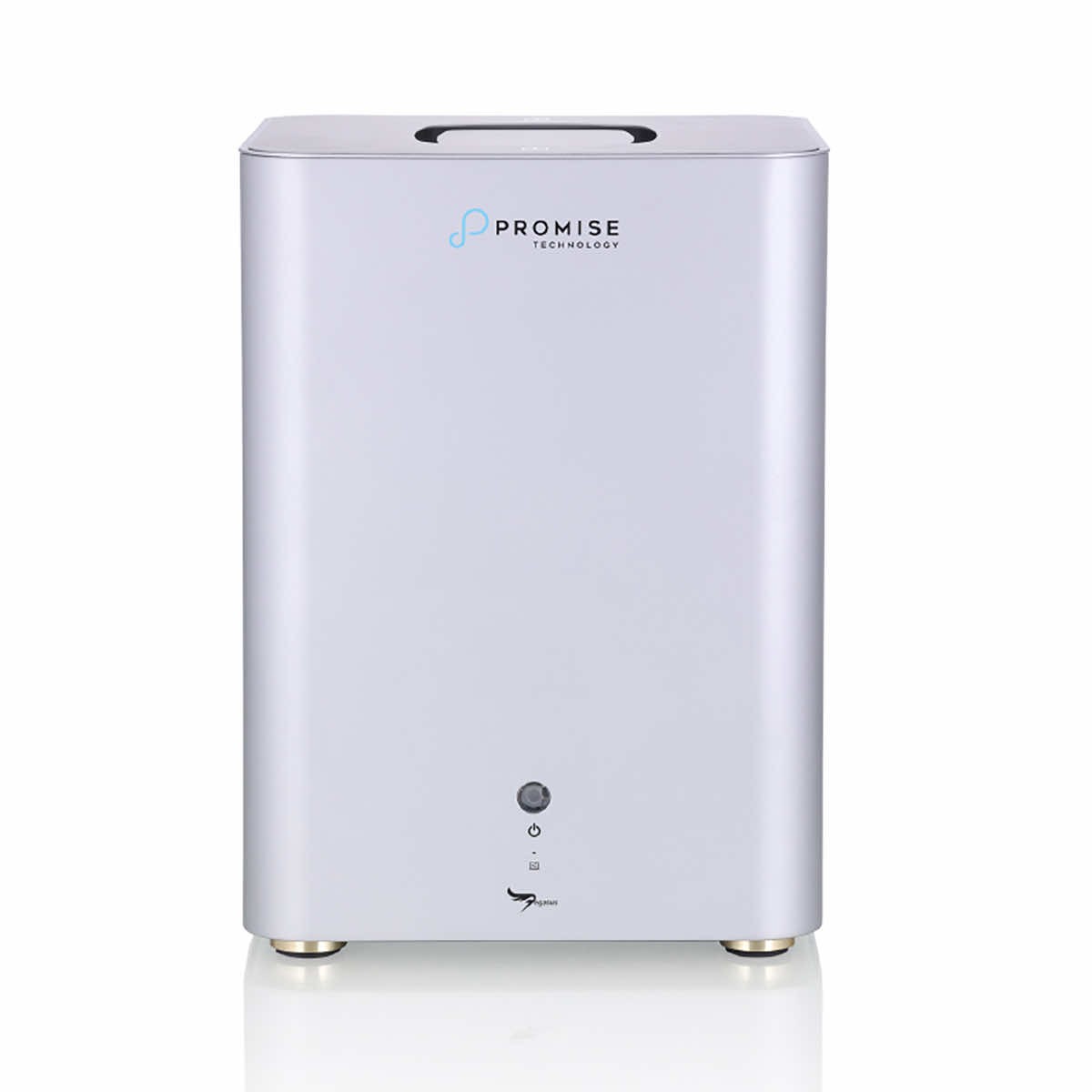

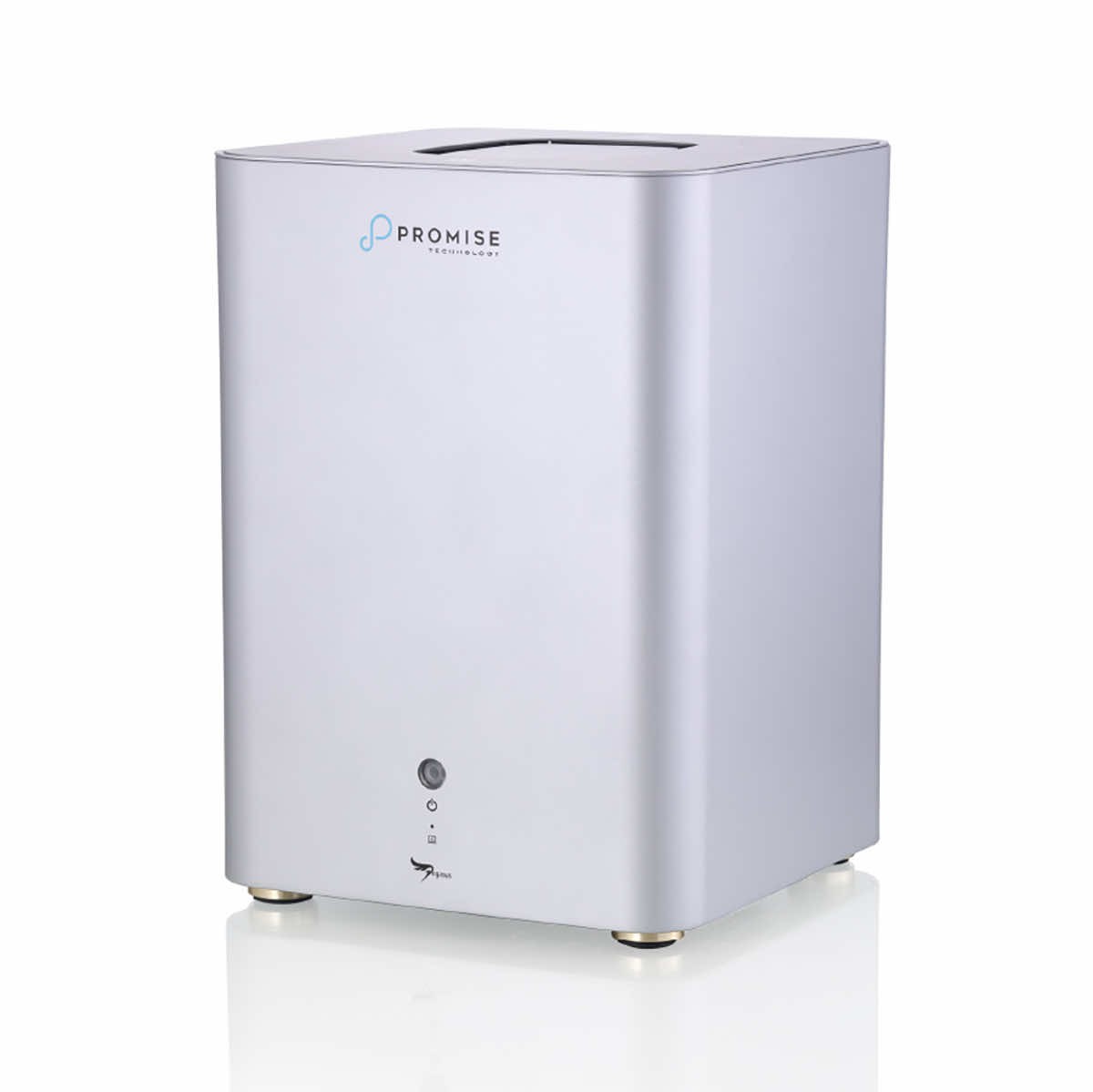

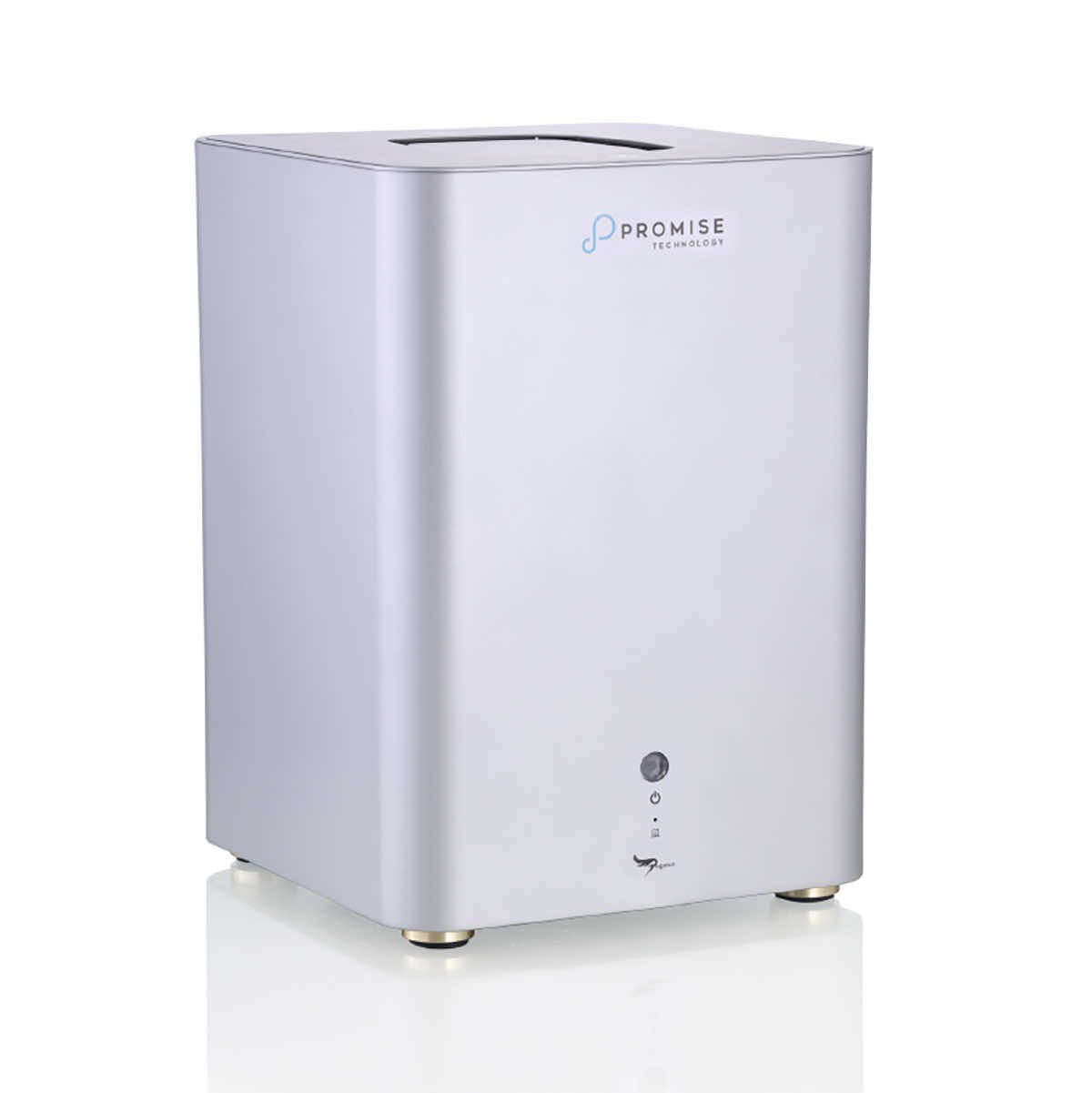

Pegasus5 R12, the new storage platform for digital media creators. In addition to HD/4K/8K video editing, the R12 is perfect for audio, digital art, photography storage and touch up, or wherever your imagination takes you. 80Gbps Thunderbolt™ 5 performance delivers 6,000 MB/s.
The innovative new compact 12-bay design of the Pegasus5 R12 enables easy access to the HDD for rapid disk replacement. Pegasus5 R12 runs whisper quiet on the desktop and is designed for easy portability.
Pegasus5 R12 provides up to 288TB utilizing PromiseRAID hardware RAID engine. PromiseRAID is a core technology for the PROMISE Pegasus line, renowned for storage performance and data safety.
A consequence of very large capacity HDD is an increased risk of failure. Predictive Data Migration (PDM), exclusive to PromiseRAID systems, performs periodic storage media analysis to anticipate potential drive problems and automatically takes corrective action before any drive failure occurs.
Highlights
ThunderboltTM 5 technology
Thunderbolt™ 5 technology for high bandwidth 80 Gbps, with data rate Up to 6000 MB/s.
12 Desktop Design
New 12 bay SATA HDD design, elegant and compact design provides the highest capacity density and high-performance experience.
Equipped with twelve 24TB HDD, Pegasus5 R12 series provides up to 288TB capacity.
4K/6K/8K Editing
Optimized Thunderbolt™ 5 ecosystem for highest resolution editing environment with 4K,6K, 8K monitors.
PromiseRAID
All Pegasus devices including the Pegasus5 R12 series feature the PomiseRAID engine as a core technical advantage over competing systems.
Green technology inside
Pegasus5 R12 series inherits the excellent power management features of PROMISE storage systems. If the host computer enters sleep mode, is shut down, or if the Thunderbolt™ connection is disconnected, the Pegasus5 R12 series enters energy savings mode.
Technical Specifications
- Model Pegasus5 R12
- 12x 8TB HDDs - 96TB RAID-0
- Form Factor 12-Bay Tower
- Drive Support 12 x 3.5" SATA HDD
- Max Capacity 288TB (12 × 24TB HDD)
- Interface type ThunderboltTM 5 80 Gbps or USB4 v1/v2 (with PCIe tunneling support)

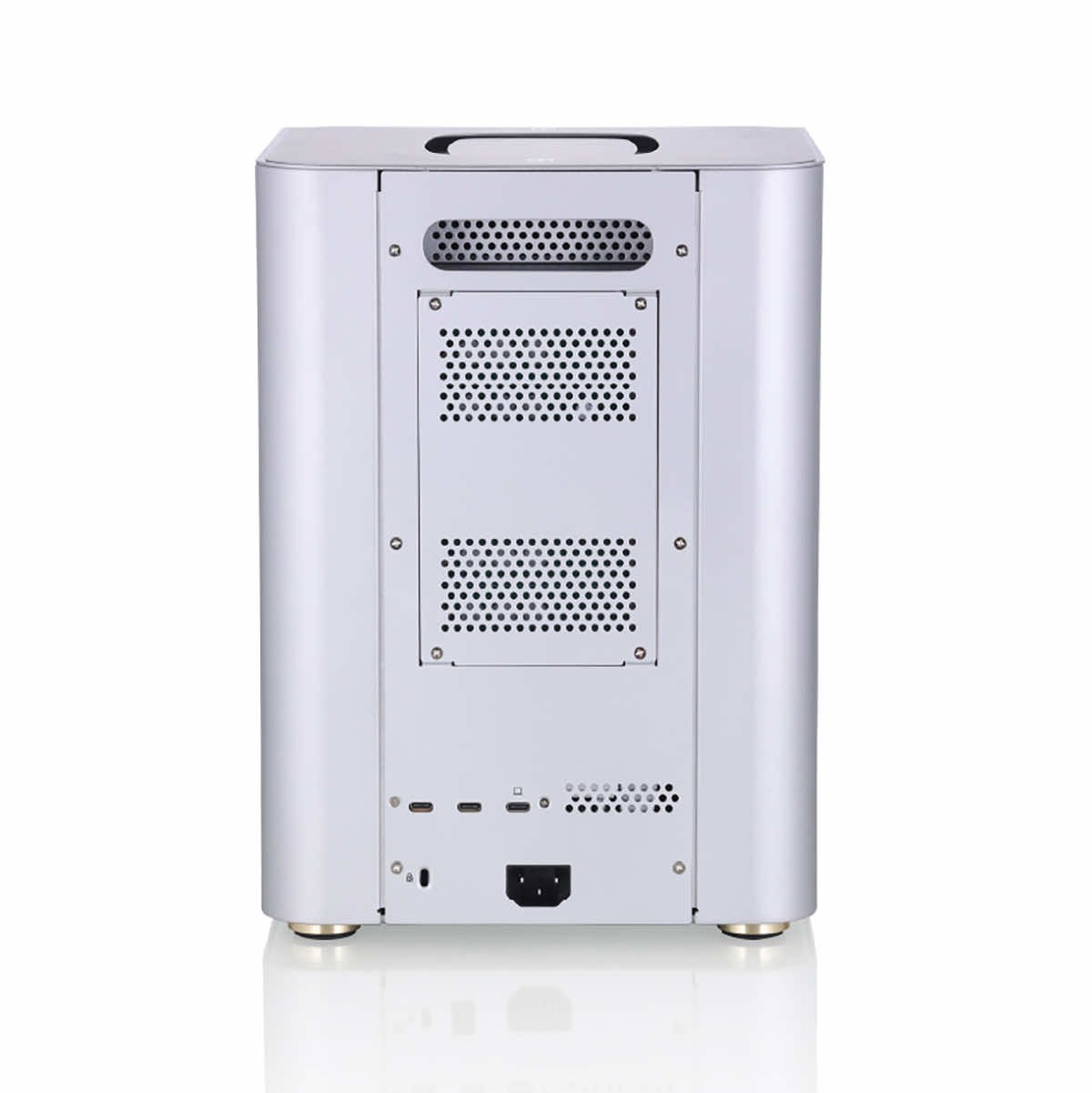

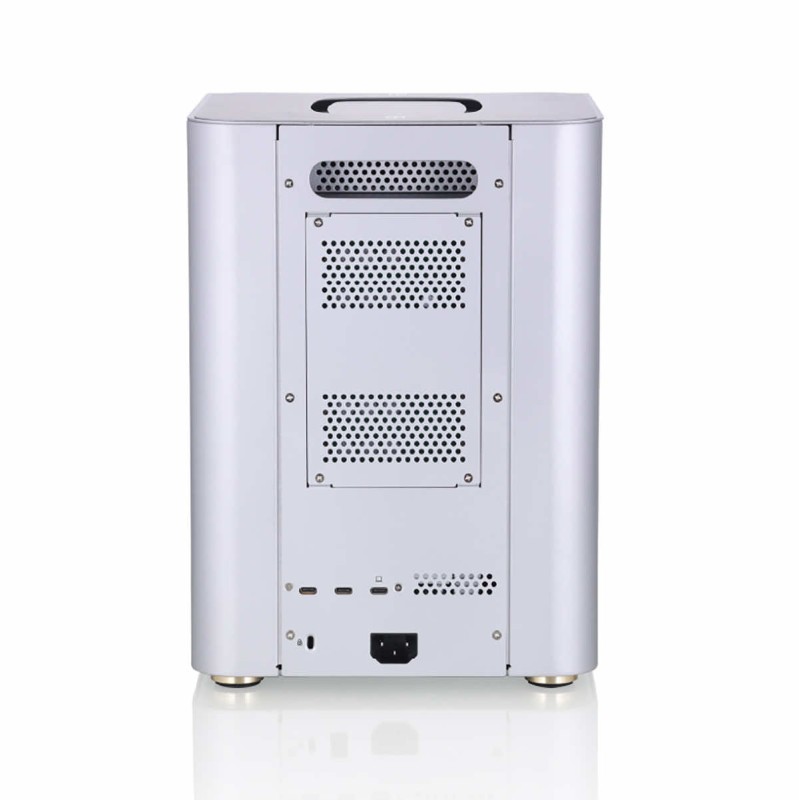

- Thunderbolt™ Port Thunderbolt™ 5 ports x 3 (Upstream x1, Downstream x2)
- External Monitor Downstream Thunderbolt™ 5 port can connect up to three 4K / dual 6K or single 8K monitor
- Power Delivery 85W (Thunderbolt™ host and USB4 host)
- Port Type USB-C Type C
- RAID Flexibility RAID 0/1/5/6/10/50/60 (HDD only)
- Performance Use Up to 3,000 MB/s
- Hot Spare* Yes
- Max LUN 128
- Hot Swap* Yes
- Supported OS Windows 11 / macOS 15 and above
- Management Tool WebPAM 5.0, CLI
- Additional Features Promise Plugin for Adobe® Premiere® Pro, Adobe® Photoshop®
- Product Specific features Intelligent Cooling, Drive SMART Health Polling
- Dimension (H x W x D, mm) 318 x 227 x 227
- Weight 16.0Kg
- Power Supply AC 100-240V auto-ranging, 50-60Hz, 500W
- Temperature Range Operating: 5° ~ 35° C , Non-operating: -40° ~ 60° C
- Humidity Operating: 10% ~ 95% non-condensing , Storage: 5% ~ 95% non-condensing
- Standard EMC: FCC, CE , Safety: cTUVus, CB
- Green Certificate ErP/EuP, RoHS, WEEE
- Warranty 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.
- Support 24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available.
