Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB-A 10Gb/s | without SFX Power Supply

Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB-A 10Gb/s | without SFX Power Supply

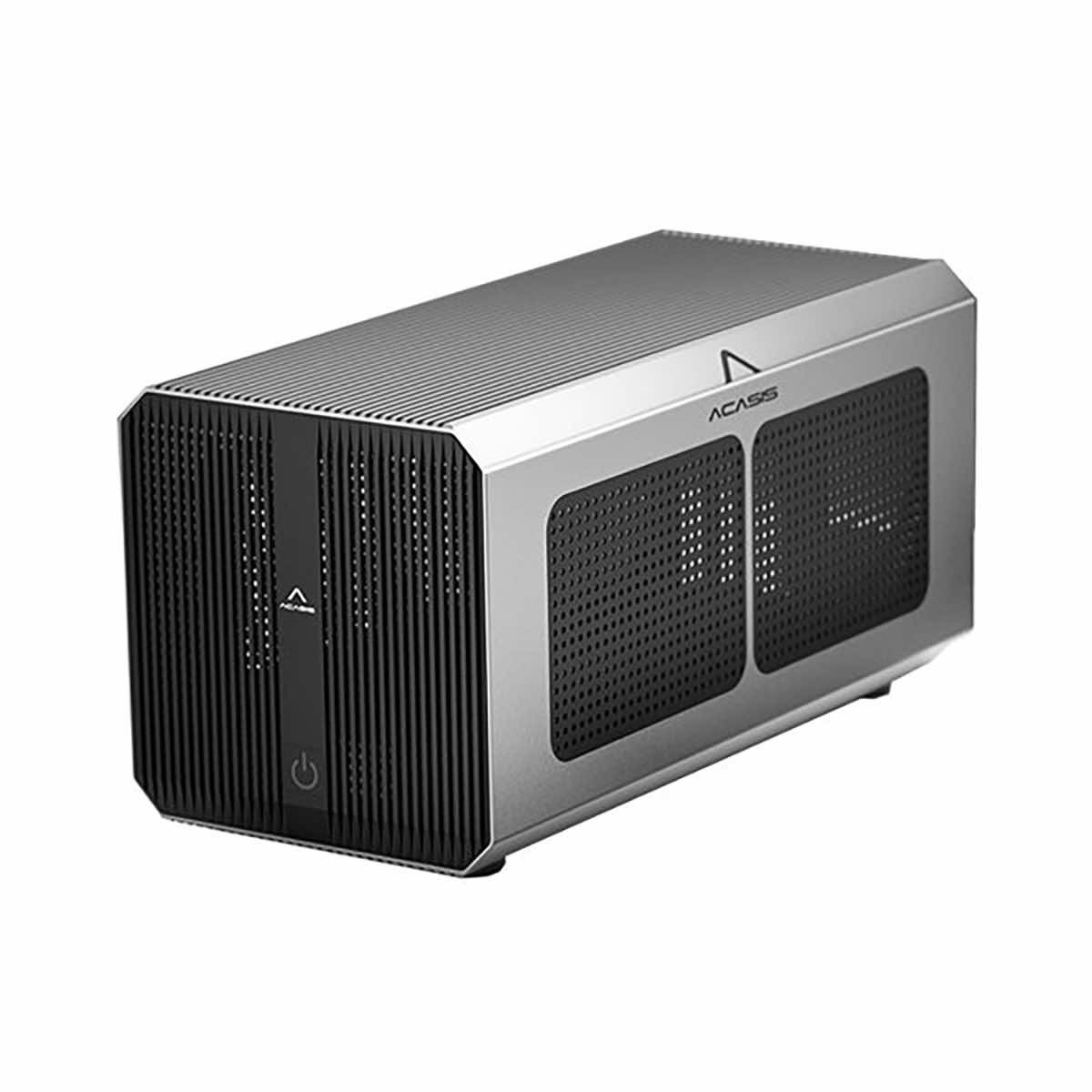

Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB-A 10Gb/s is the latest PCIe 3.0 x16 eGPU enclosure from Acasis, allowing you to connect even the latest, most powerful graphics card to your Apple Mac computer with MacOS and Intel processor or Windows computer/laptop/tablet via Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, or USB-4 with 40Gb/s bandwidth. In addition, the Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB-A 10Gb/s has a 40Gb/s USB-C pass-through port and a 10Gb/s USB-A 3.x connector. The enclosure is also compatible with PCIe cards such as NVMe / SAS / SATA RAID controllers, network cards, Fibre Channel cards, audio/video capture cards, and others.

Key features of the Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB-A 10Gb/s

• The Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB-A 10Gb/s is a PCIe 3.0 x16 enclosure compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, and USB4 ports
• Connect a powerful graphics card or other full-length, double-width PCIe 3.0 x16 card to your Apple Mac or other computer/laptop/tablet with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, and USB4 ports
• Play the latest games, edit photos or videos, design and visualize, capture images on your Apple laptop, Mac mini, Mac Studio, PC, or tablet.
• Enjoy MEGA performance without having to change your computer or the ecosystem you work in (macOS or Windows).
• If you have a laptop or desktop computer without PCIe ports, such as a NUC with a basic graphics card, and you need high performance, use the Acasis eGPU Dock 40Gb/s External Box for 1x PCIe 3.0 x16 to Thunderbolt | USB4 with USB -A 10Gb/s, you can connect the latest and most powerful graphics card or other PCIe 3.0 x16 expansion card to

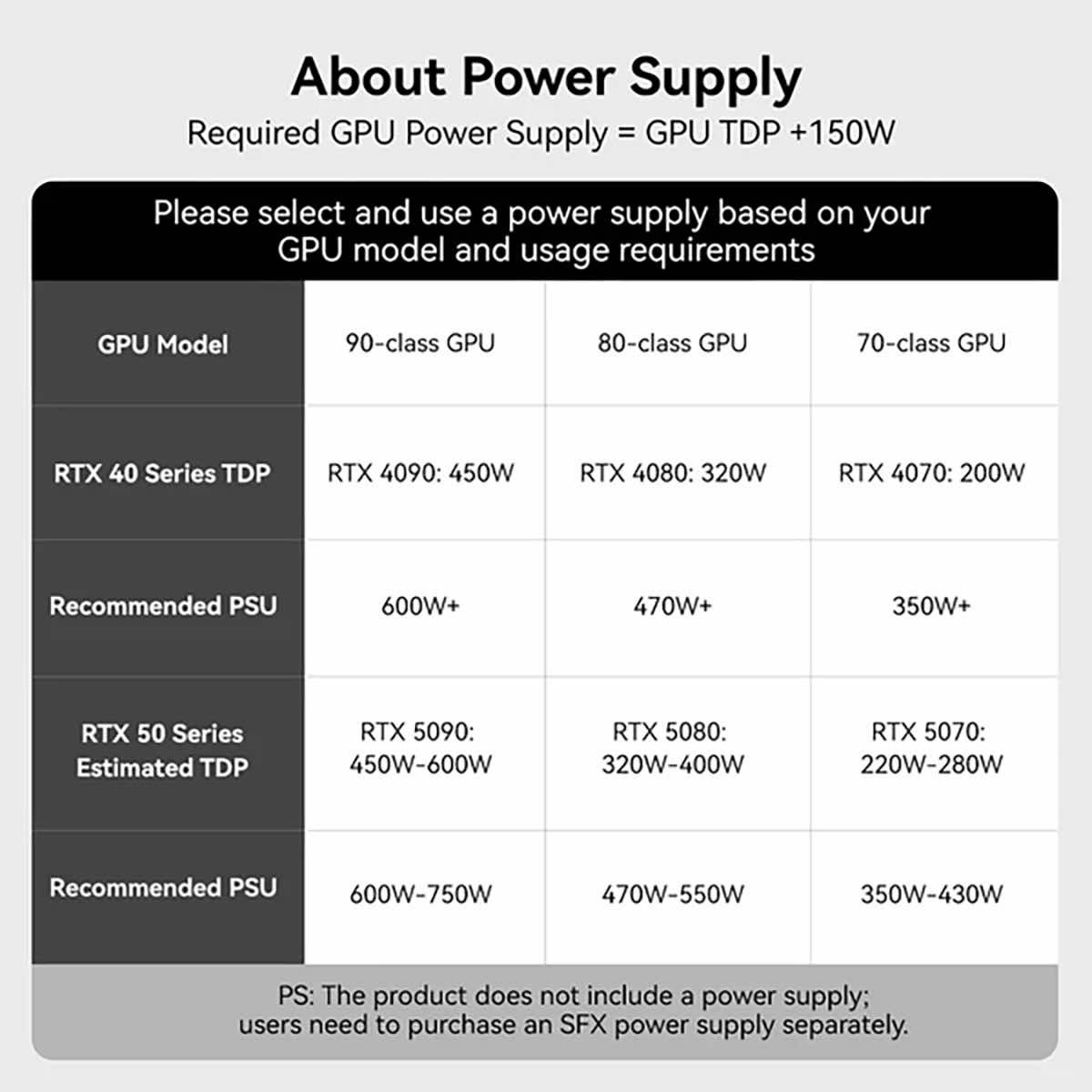

• The enclosure is sold without a power supply, which is required for the system to function properly. The power supply wattage depends on the graphics card used in the enclosure and should range from 350 W to 750 W.
• The enclosure allows for USB-C 40 Gb/s daisy chaining and an additional USB-A 10 Gb/s port.

Technical specifications

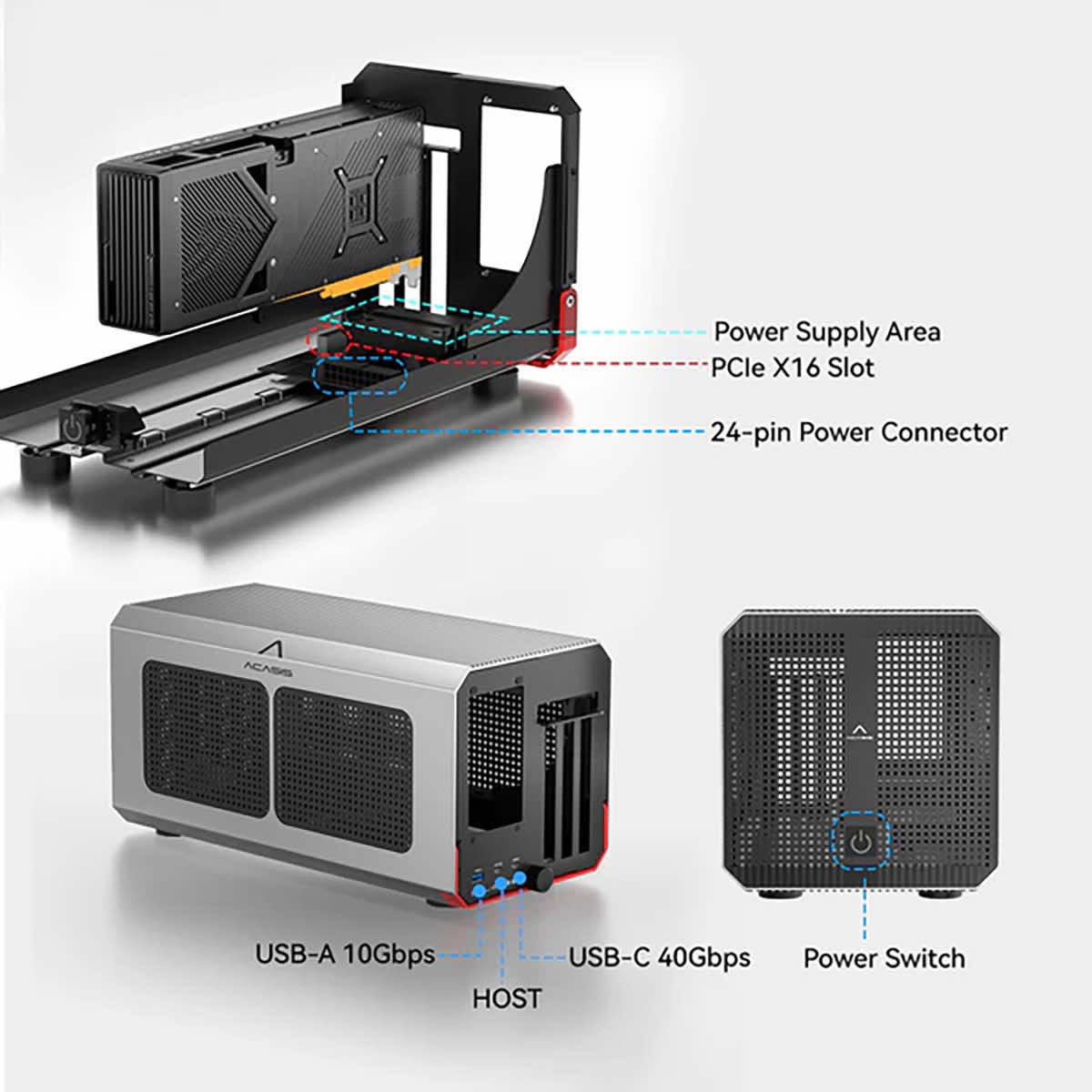

• 2x USB4 ports, Thunderbolt 40Gb/s including 1x to host

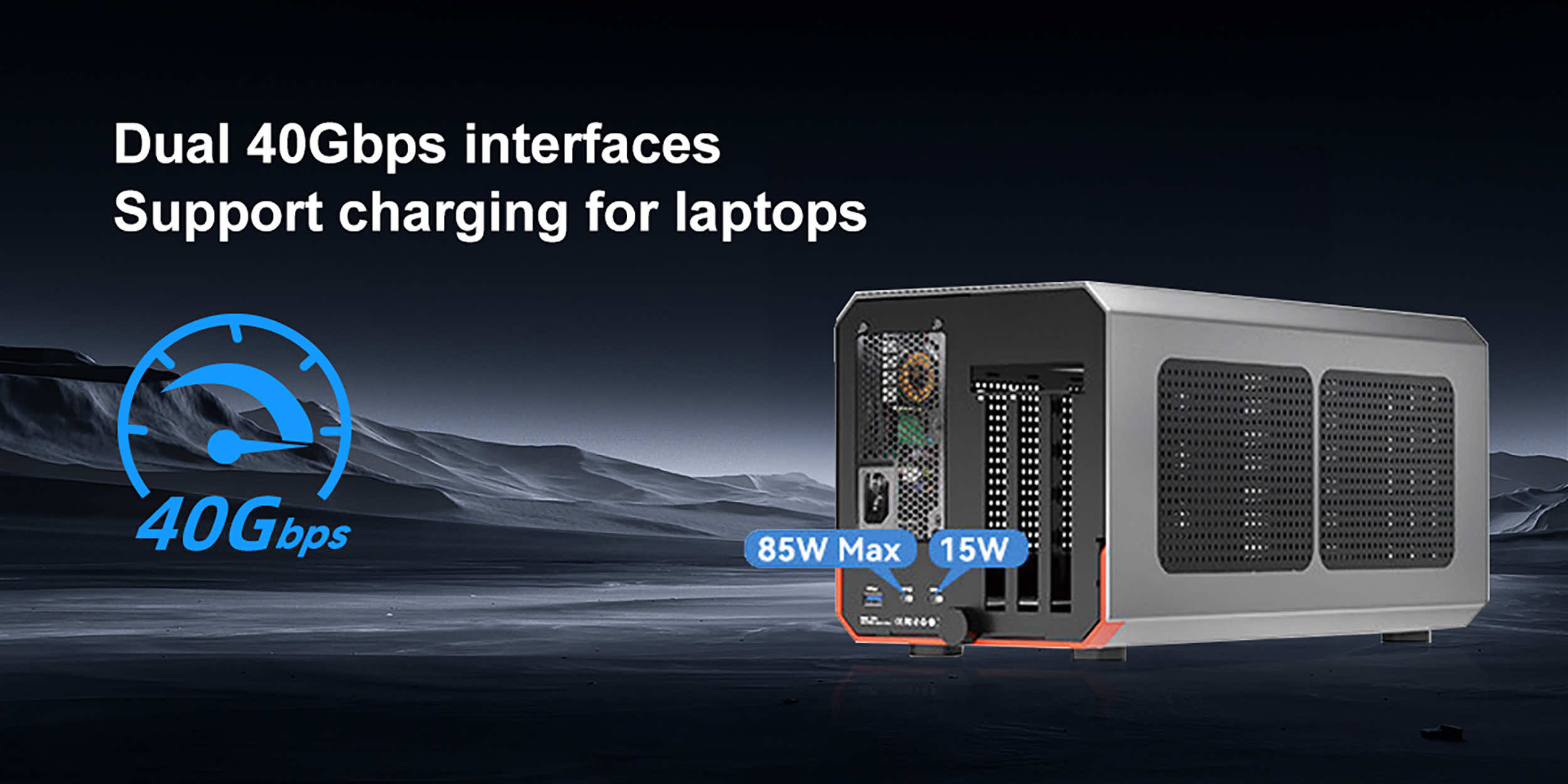

• Power supply for connected host with up to 85W power
• 1x USB A3.2 Gen2 10Gbps
• 1x slot for ATX/SFX power supply
• 1x PCle 3.0 x16 connector
• Support for full-length (350mm) and double-width (60mm) cards
• Support for most NVIDIA/AMD graphics cards, including RTx 50 series and Rx 7000 series
• Support for Windows 10/11, Linux, macOS operating systems (for macOS with Silicn M1/M2/M3/M4 processors, excluding graphics cards)
• Aluminum case
• Case sold without power supply

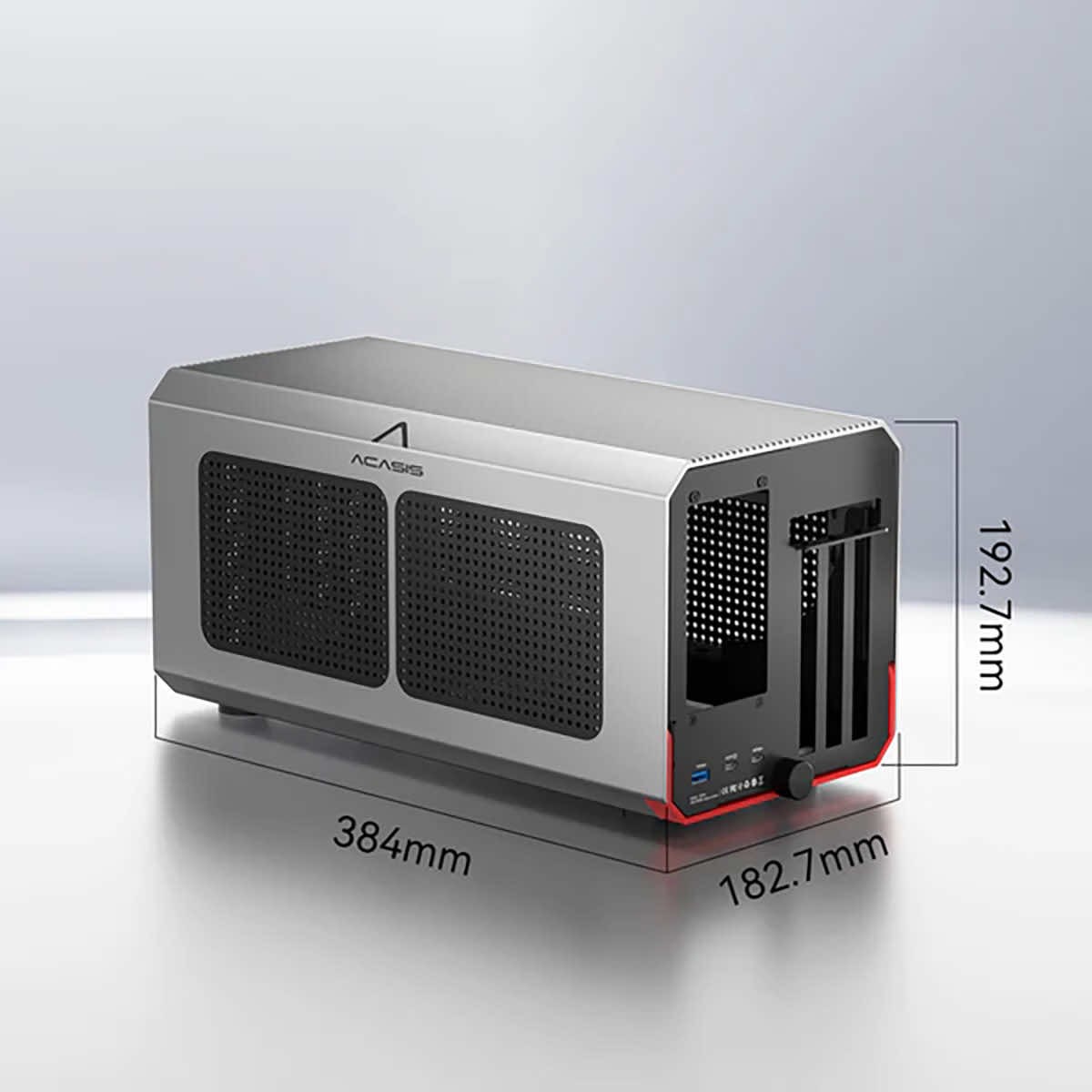

• Dimensions: 384*192.7*192.7mm
