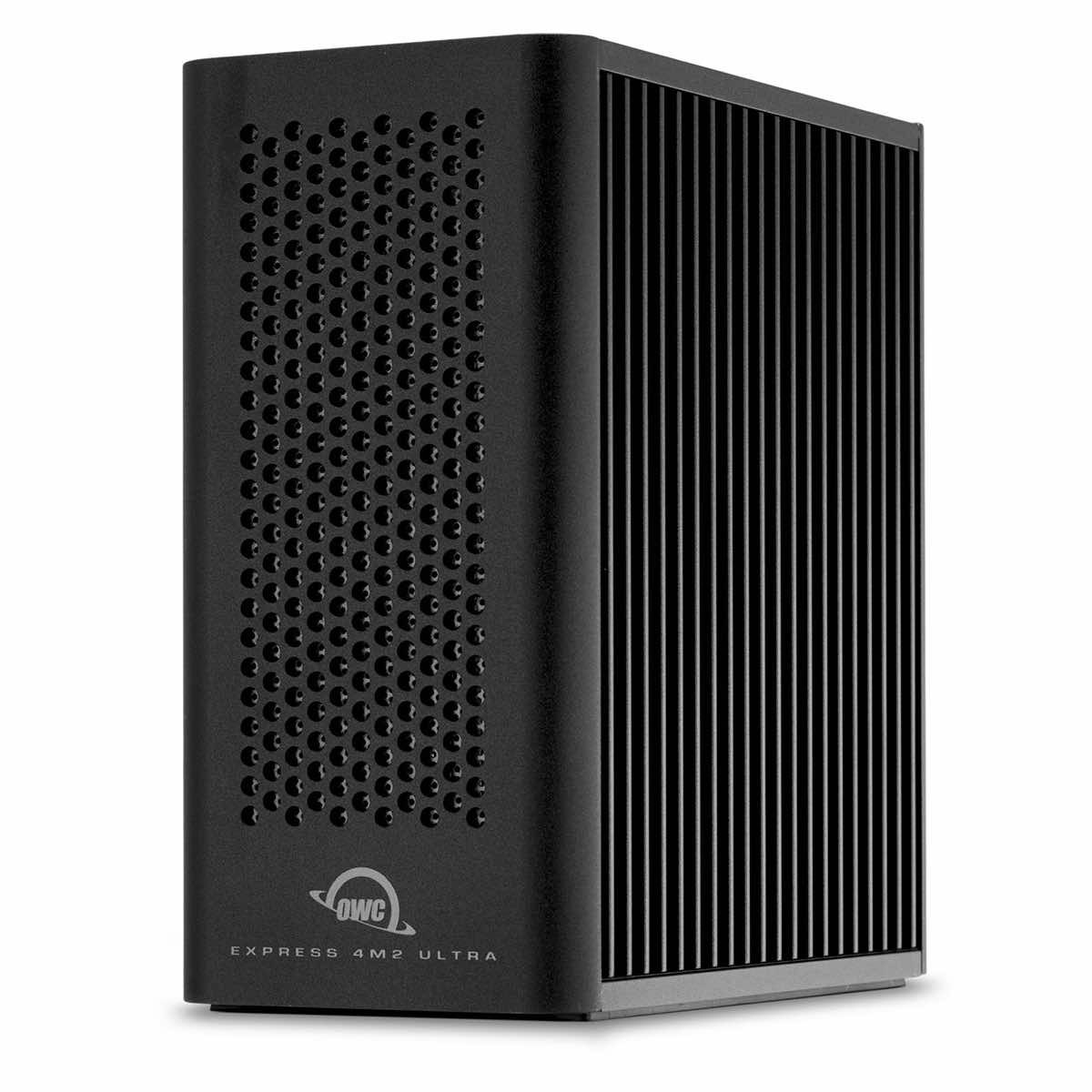

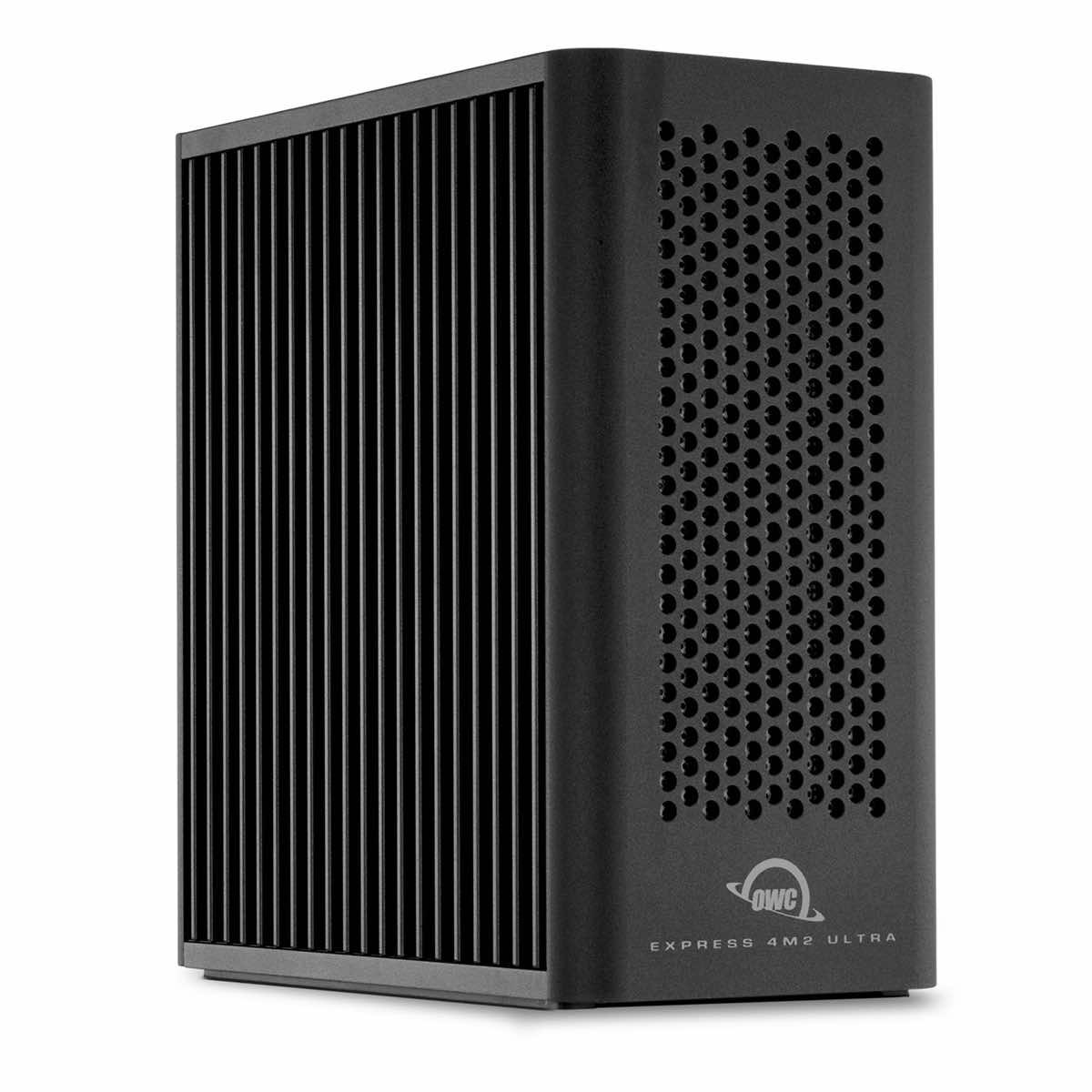

OWC Express 4M2 Ultra Enclosure 4x M.2 NVMe SSD Thunderbolt 5 | 80 GB/s up to 6622MB/s

The OWC Express 4M2 Ultra is the fastest, compact, external NVMe RAID enclosure connected via an 80 Gb/s Thunderbolt 5 port. The enclosure achieves speeds of up to 6,622 MB/s¹ in RAID-0, making it the ideal solution for handling raw 12K video footage, multi-camera 8K sequences, batch processing of high-resolution images, and large datasets.

The enclosure allows for easy installation of up to four NVMe M.2 2280 or 2242 SSDs, single- or double-sided, PCIe 3.0/4.0/5.0, depending on the user’s budget and performance needs. With support for RAID 0/1/4/5/10/JBOD via SoftRAID (not included) or another RAID tool, the user decides which RAID level best suits their work environment needs.

The enclosure’s design allows for easy replacement with faster, larger drives whenever needed or when they become available, without having to purchase a new enclosure. At the same time, the OWC Express 4M2 Ultra leverages the incredible speed of Thunderbolt 5 at 80Gb/s to cut import times in half compared to Thunderbolt 4 or USB4 ports.

The OWC Express 4M2 Ultra allows you to scale enclosures up to 128TB by daisy-chaining additional Express 4M2 Ultra devices or connecting up to five additional Thunderbolt devices and one USB peripheral via the second Thunderbolt 5 port.

Express 4M2 Ultra Connected to...

• Mac computer with Apple silicon M3/M4/M5 or newer with Thunderbolt 5 (80Gb/s) speed up to: 6622MB/s
• Mac computer with Apple silicon M-series with Thunderbolt 3/4 (40Gb/s) speed up to: 3200MB/s
• PC with Thunderbolt 5 (80Gb/s) speed up to: 6622MB/s
• PC with USB4/Thunderbolt 4 (40Gb/s) speed up to: 3200MB/s
• Intel Mac computer with Thunderbolt 3 (40Gb/s) speed up to: 2800MB

Express 4M2 Ultra is ideal for:

DITs and Filmmakers wanting to build the fastest compact NVMe SSD RAID with expandable capacity and the ability to daisy-chain additional enclosures as a massive single volume or connect devices for additional capabilities through the second Thunderbolt 5 port while experiencing maximum offload speeds and thermal stability when backing up media cards from multiple cameras on set.

Professional video editors, VFX artists, Colorists, and high-volume photographers seeking the fastest NVMe SSD RAID to handle demanding post-production and editing workflows including 12K RAW video, VFX compositing work, multicam sequences in 8K RAW or ProRes video, and batch editing ultra-high-resolution pictures.

Performance-driven professionals, power users, and technical teams who require full control over capacity, speed, and scalability. Express 4M2 Ultra is the ultimate DIY Thunderbolt 5 NVMe RAID platform for pushing demanding workflows and data intensive applications beyond conventional limits.

Includes

• 1x OWC Express 4M2 Ultra External Storage Enclosure
• 1x 0.7M (28") Thunderbolt 5 80Gb/s Cable
• 1x 90W External Power Supply
• 1x WU Power Cable
• Support Manual for OWC Express 4M2 Ultra (Digital)

Specs

• Drive Bays: 4 bays supporting: M.2 SSDs
• Supports single-sided and double-sided M.2 2280, M.2 2242 "M Key" drives
• NVMe SSDs with a heatsink are not supported.
• Supports PCIe Gen 3 and later SSDs with Gen 4 and later recommended for best performance.
• Each bay offers PCIe 4.0 x1 performance.
• Single drive performance up to 1600MB/s.
• Hot Plug Support Yes
• Boot Support All four drive bays are bootable on macOS. SSDs with 512 byte sectors require macOS 10.13 or later. Boot Camp is not supported.
• RAID Capable Yes
• RAID Levels Supported RAID 0, RAID 1, RAID 4, RAID 5, RAID 10, JBOD
• RAID Features Software RAID

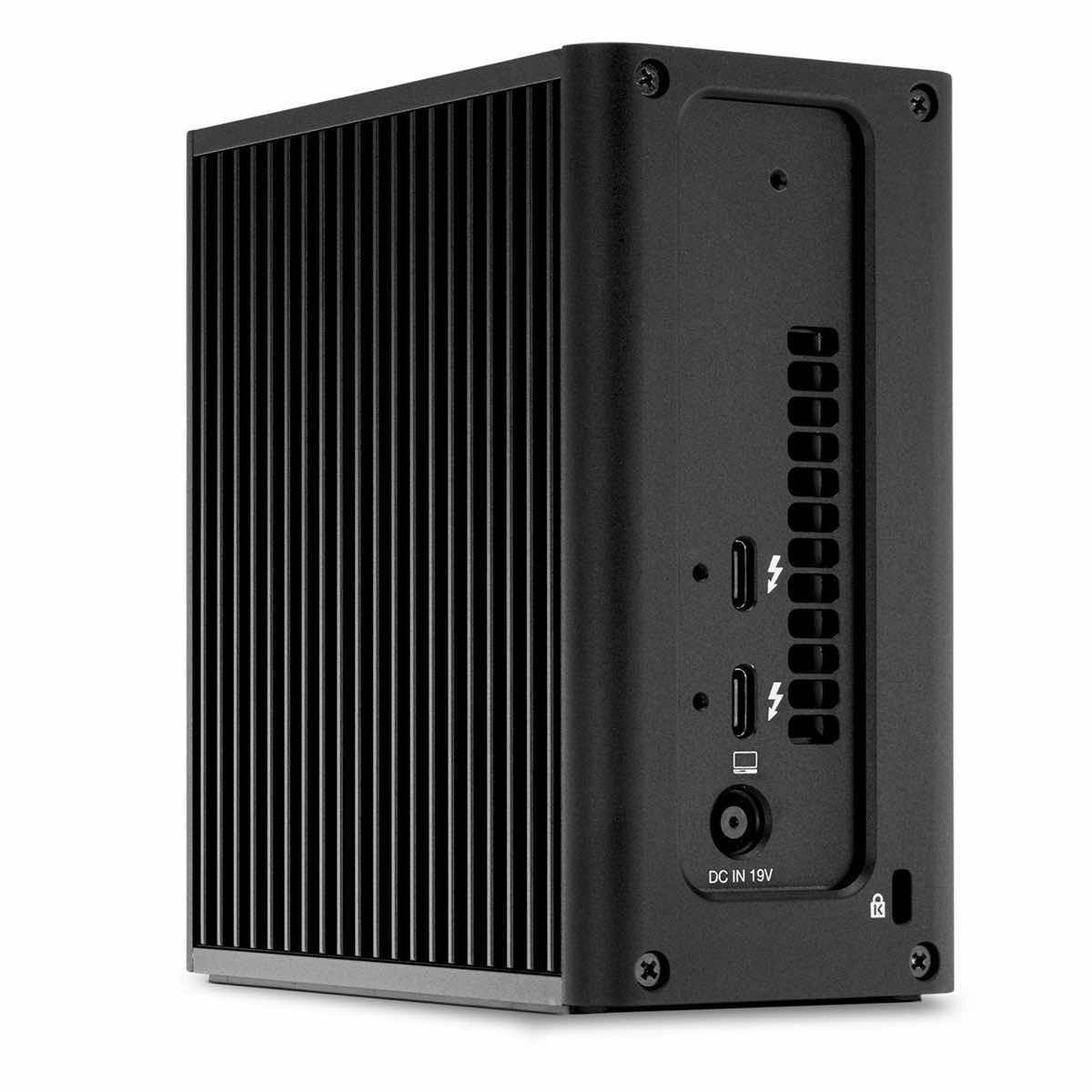

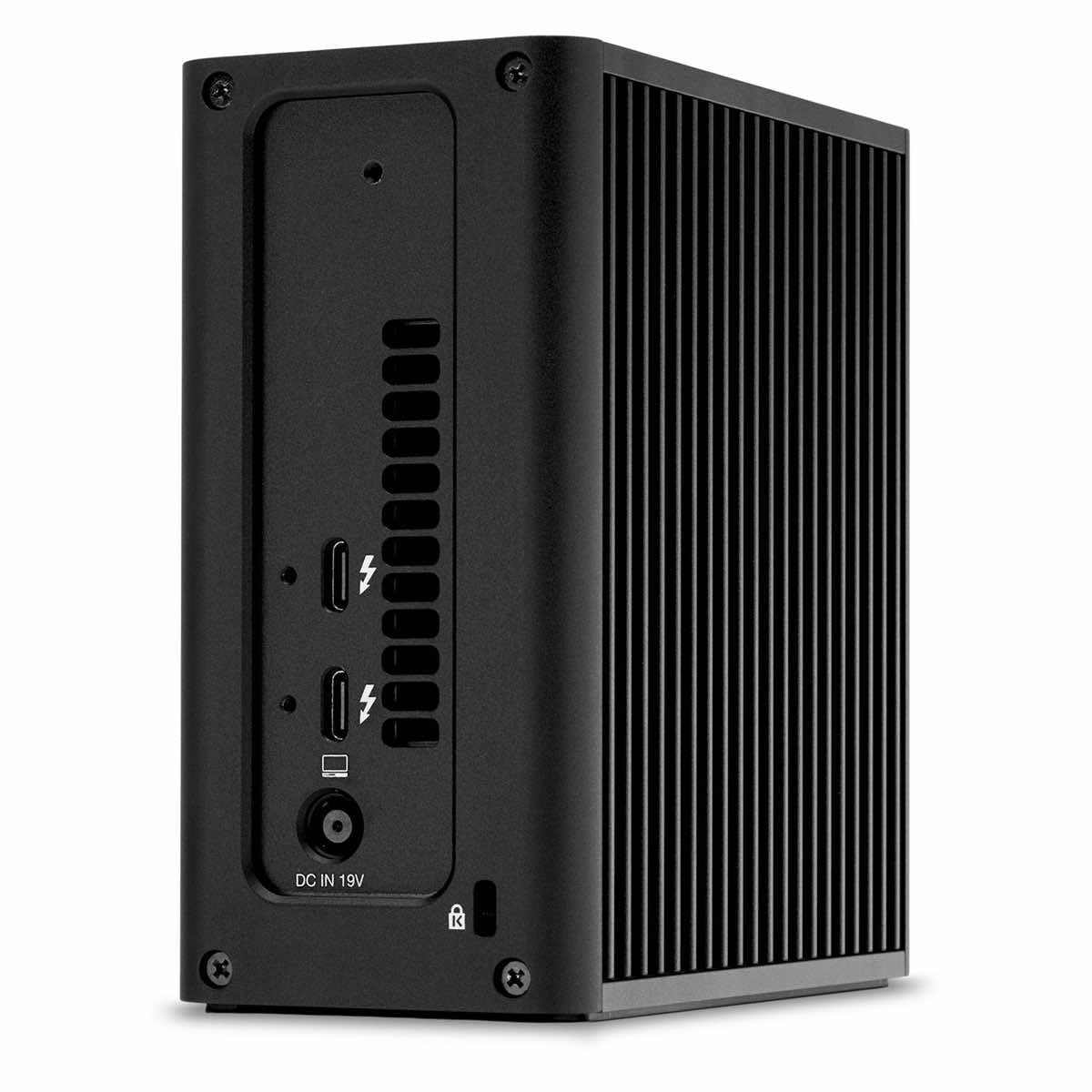

• Device Ports 1x Host Port - Thunderbolt 5 (USB-C) up to 80Gb/s
• Power Delivery 15W
• UASP Support UASP (USB Attached SCSI Protocol) is supported
• Display Support Up to two 8K displays @ 120Hz or three 4K displays @ 144Hz
• Display Support by Port Thunderbolt 5 up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1
• Chipset / Controller Barlow Ridge JHL9480
• Host Interface Requirements Thunderbolt 5 port, Thunderbolt 4 port, Thunderbolt 3 port (Mac Only), USB4 port
• Driver Required No
• Other Requirements: When using one or more SSDs with 512 byte sectors, macOS 10.13 or later is required. SoftRAID works with macOS 10.14 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased.
• External Power Adapter: Yes
• Power Supply
•  Wattage 90W
• Fans 1x 40mm 4,000RPM cooling fan < 35°C (FAN OFF), >= 35°C (FAN-PWM 40%), >= 45°C (FAN-PWM 60%), >= 50°C (FAN-PWM 80%), >= 55°C (FAN-PWM 100%)
• Housing Color Black
• Housing Material Aluminum
• Dimensions Height: 12.3 cm (4.8 in), Length: 11.7 cm (4.6 in), Width: 6.0 cm (2.4 in)
• Weight 900.0 g (1.98 lbs)
• Certifications CE, FCC, UKCA, ICES, RCM, VCCI
