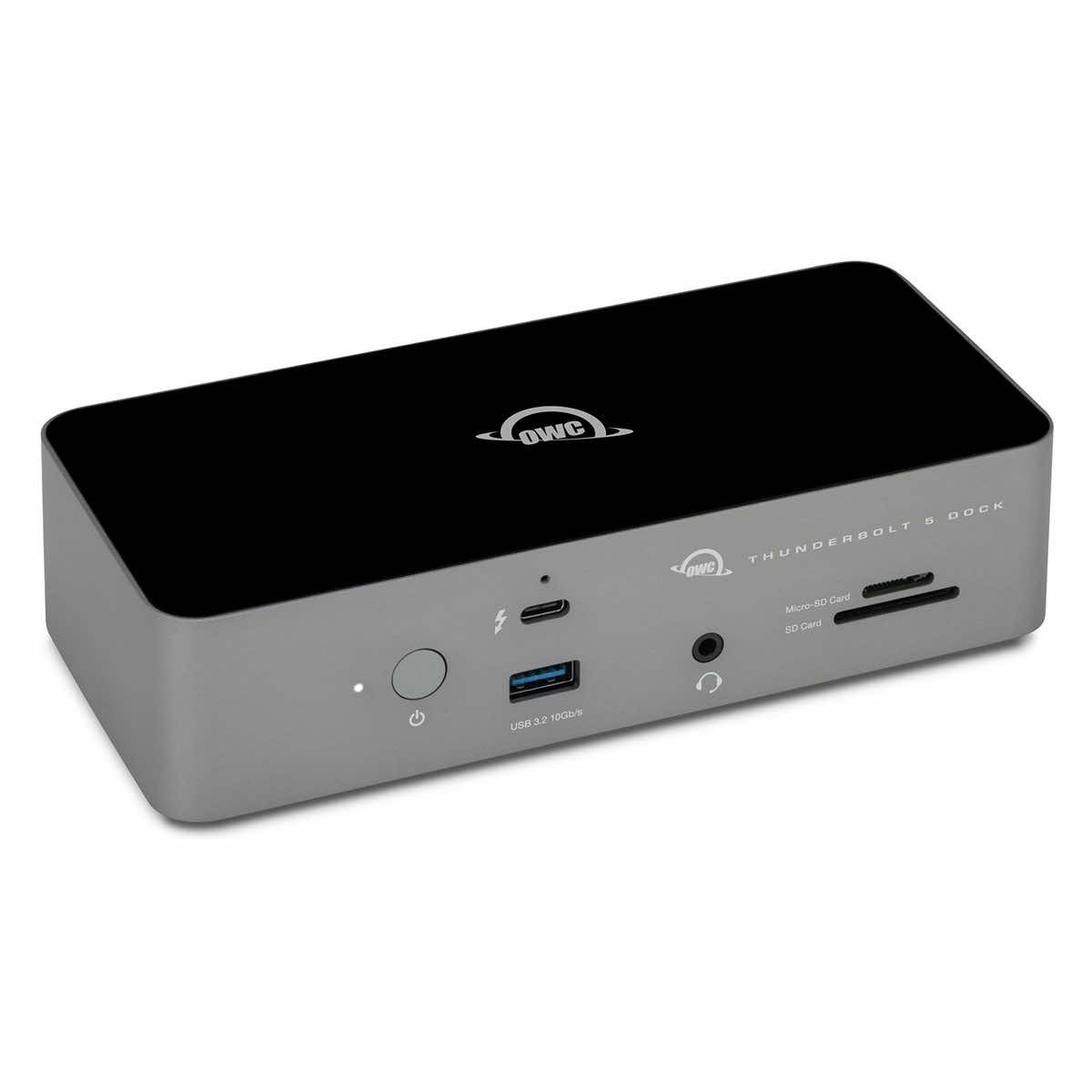

OWC Thunderbolt 5 Dock 11 ports 140W PD 2.5GbE RJ45 SDXC microSDXC reader

Advanced capabilities for everyday and advanced connectivity

Whether you're a technology enthusiast or a creator working on your latest masterpiece, the Thunderbolt 5 docking station is the perfect all-in-one solution to streamline your setup and maximize your productivity. With the unmatched speed of Thunderbolt 5, you'll transfer data faster and gain more time for creating, editing and producing. You'll also unleash the full potential of all your connected devices - from legacy devices to the latest Thunderbolt 5 SSDs - all using just one Thunderbolt port on your Mac, iPad, PC, Chromebook or tablet.

Seamlessly connect myriad devices - memory cards, NAS storage, Thunderbolt and DisplayPort displays, desktop peripherals and more - with universal USB/USB-C compatibility. Enjoy sharper and smoother video on up to three 8K displays. Get things done faster and easier, keep your workspace organized and keep your notebook charged at up to 140W with 11 versatile ports for enhanced multitasking performance.

Unleash your potential with maximum bandwidth

The magnificent trio of Thunderbolt 5 ports are not just impressive specifications. They are the key to unlocking your full potential by maximizing the available bandwidth both upstream and downstream to your devices.

You'll say “wow” - or something more powerful - when you send huge media files by connecting two CFexpress USB4 Type-B card readers (each providing read speeds of up to 3330 MB/s) along with an OWC Thunderblade X12 or OWC Envoy Ultra with write speeds of over 6000 MB/s. This configuration allows you to take advantage of Thunderbolt 5's incredible bandwidth and read and write speeds in excess of 6,000 MB/s to significantly reduce backup time from media cards.

Connect up to three Thunderbolt 8K HDR monitors at 60 Hz with DSC (or 30 Hz without DSC) on Windows and up to two Thunderbolt 6K monitors on Mac. Now you'll have the expansive ultra-high-resolution screen area you need for detailed work.

Supporting cast at your fingertips

A truly great presentation is not just about the main performers. The smallest role is often critical to achieving critical acclaim, and the OWC Thunderbolt 5 Dock provides an award-winning supporting cast of useful features:

Must Have USB Ports

Connect your peripherals with two 10 Gbps USB-A ports and one 5 Gbps USB-A port. Whether it's external drives, keyboards or mice, you'll enjoy fast data transfers.

Manage multiple memory cards

Transfer photos and videos quickly with high-speed microSD and SD 4.0 UHS-II slots.

Network Reliably Faster

The 2.5GbE port provides a stable and fast connection for remote collaboration and cloud services, so you won't be hampered by slow data transfers between local devices and unreliable Internet connections.

Record or listen

Whether you're producing a hit song or a podcast for people, headphones or a microphone can be easily plugged into the audio jack.

Create an advanced ProStation workstation

While the iPad Pro and other tablets offer incredible potential for content creation, they are limited by limited internal memory, display size and often a single Thunderbolt (USB-C) port. Instead of carrying a bulky notebook or, worse, being chained to a non-portable desktop workstation, you can capture what you need on the fly with a tablet. When you return to your desk, you can turn the tablet into a “prosthetic” with an external display, keyboard, mouse and external drive connected to the OWC Thunderbolt 5 Dock.

Specifications

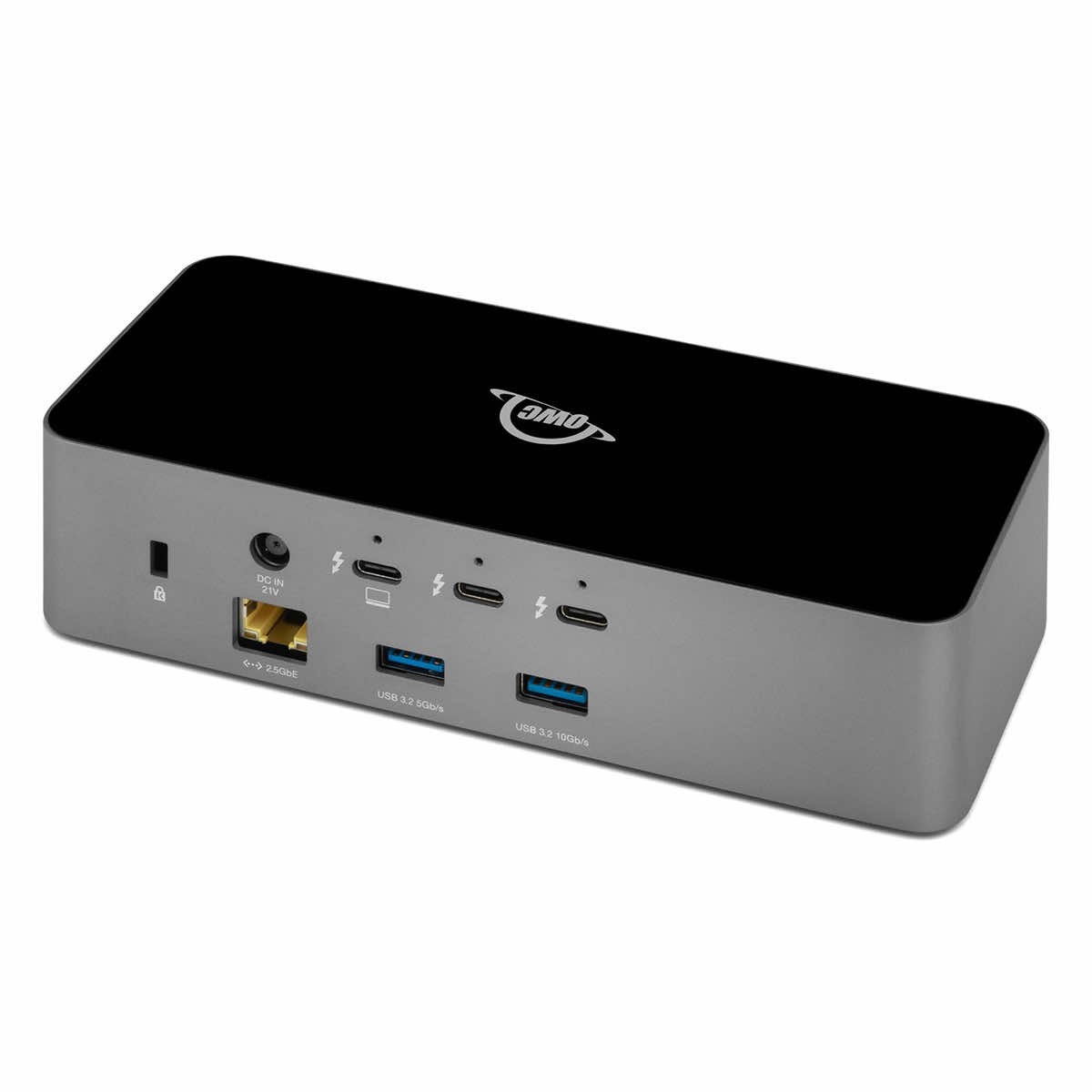

• Device ports: 1x Host port - Thunderbolt 5 (USB-C) up to 80 Gbps bidirectional data transfer rate and up to 120 Gbps display bandwidth, 3x Thunderbolt 5 (USB-C) port, 2x USB 3.2 Gen 2 Type-A port up to 10 Gbps (1250 MB/s) - backward compatible with USB 2.0/3.0, 1x USB 3.2 Gen 1 Type-A port up to 600 MB/s, 1x RJ45 2.5 Gigabit Ethernet (2.5GbE) port, 1x Stereo 3.5mm audio input/output combo port
• Memory card slots: 1x microSDXC (UHS-II [312 MB/s]), 1x SDXC (UHS-II [312 MB/s])
• Power Delivery: Thunderbolt 5 host port provides up to 140 watts of power to the host computer. Thunderbolt 5 device ports (for external drives and other devices) provide 15 watts of power. USB3.2 device ports (for external drives and other devices) provide 7.5 watts of power.
• Display support: Up to three 8K displays at 60 Hz, or two 8K displays at 120 Hz
• Display support via Thunderbolt 5 port for up to two 8K displays at 120 Hz or three 4K displays at 144 Hz via native Thunderbolt 5 or other displays that support USB-C and DisplayPort 2 connections.
• 1x RJ45 2.5GbE port: Ethernet (RJ45) speeds: 2.5Gbps (2.5GBASE-T), 1Gbps "Gigabit" (1000BASE-T), 100Mbps (100BASE-T)
• Compatible with: macOS, Windows version 10 and above, Windows Server version 2016 and above, ChromeOS
• Power button: yes
• Color Space Gray
• Size: 178x78x42mm
• Weight: 530.0g
• Certifications: CE, FCC, ICES, RCM, VCCI, UKSA, RoHS Compliant
