LMP ThunderDock TB5 8K 14 Port Thunderbolt 5 80Gb/s PD140W

The LMP ThunderDock TB5 is a Thunderbolt 5 docking station with 14 ports that supports data transfer, video output, audio connections and network access through a single Thunderbolt 5 cable. It is backward compatible with USB4 as well as Thunderbolt 3 and 4. The aluminum enclosure supports horizontal or vertical placement and a power on/off button eliminates the power consumption when not in use. The LMP ThunderDock TB5 8K 14 Port works with macOS and Windows.

For video output, the ThunderDock TB5 offers two Thunderbolt 5 ports that support resolutions up to 8K@60 Hz, as well as two HDMI 2.1 ports supporting up to 4K@60 Hz. Multi-monitor setups are possible depending on the capabilities of the host device. Video transmission is handled via DP Altmode, so compatibility with the host’s external display support should be verified.

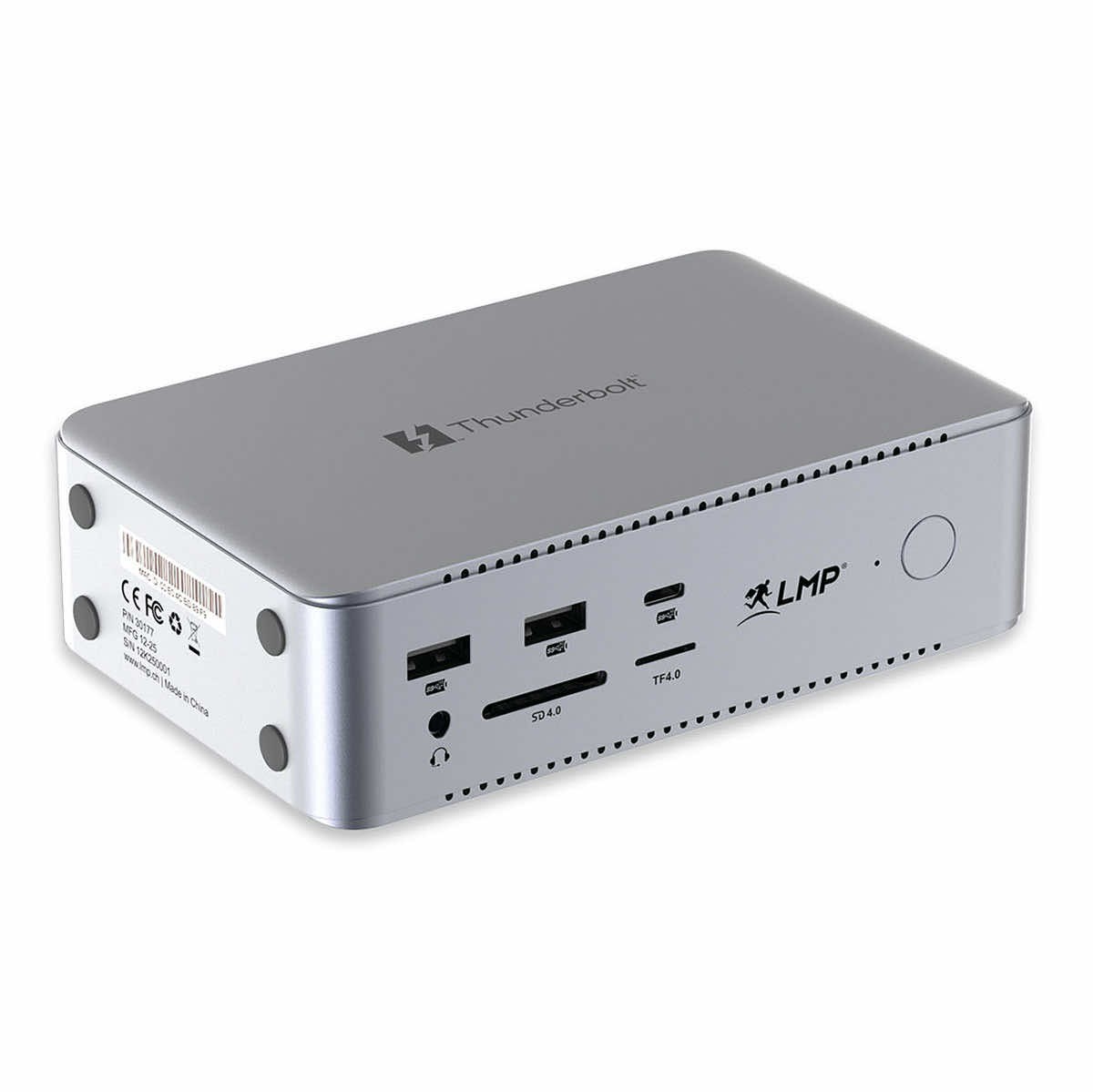

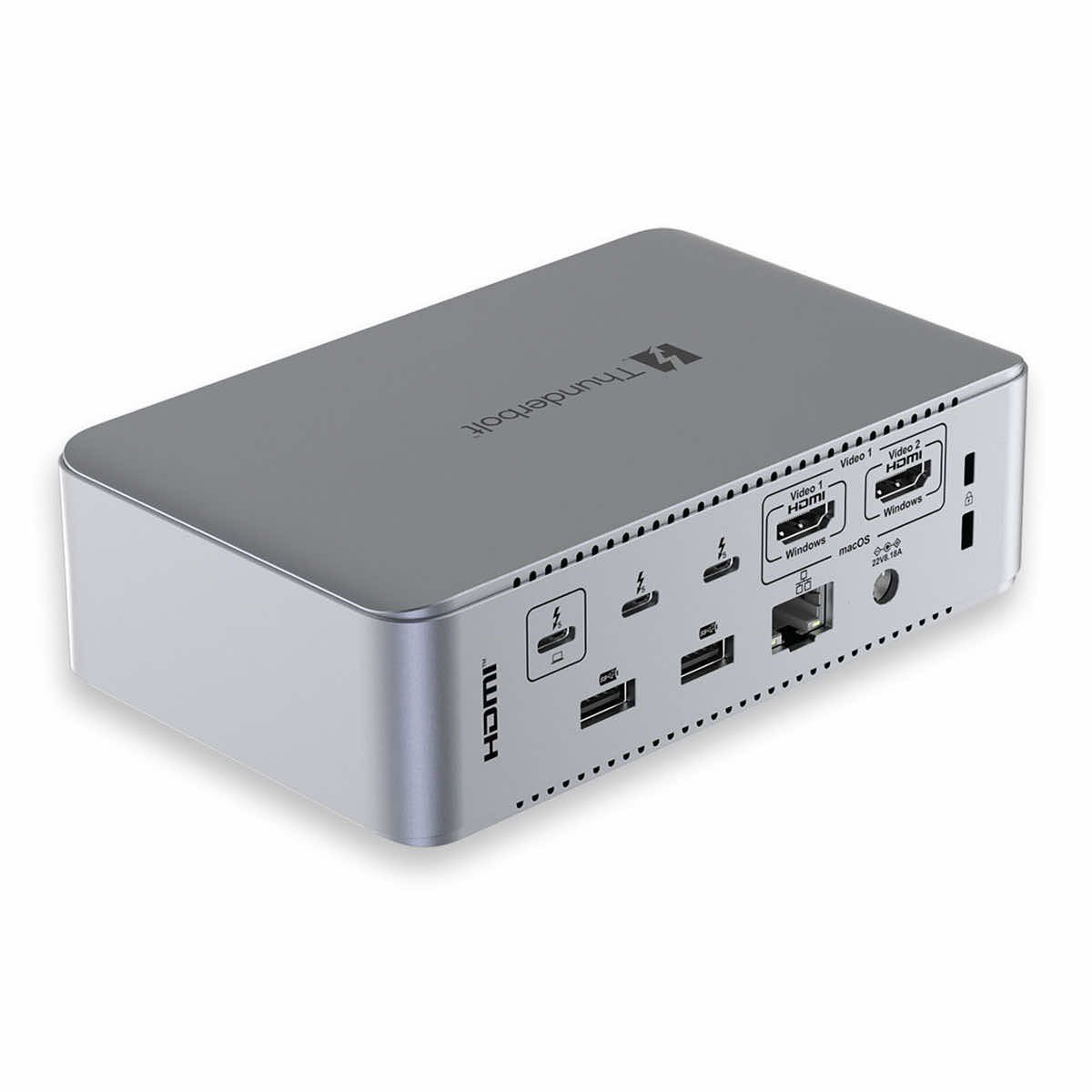

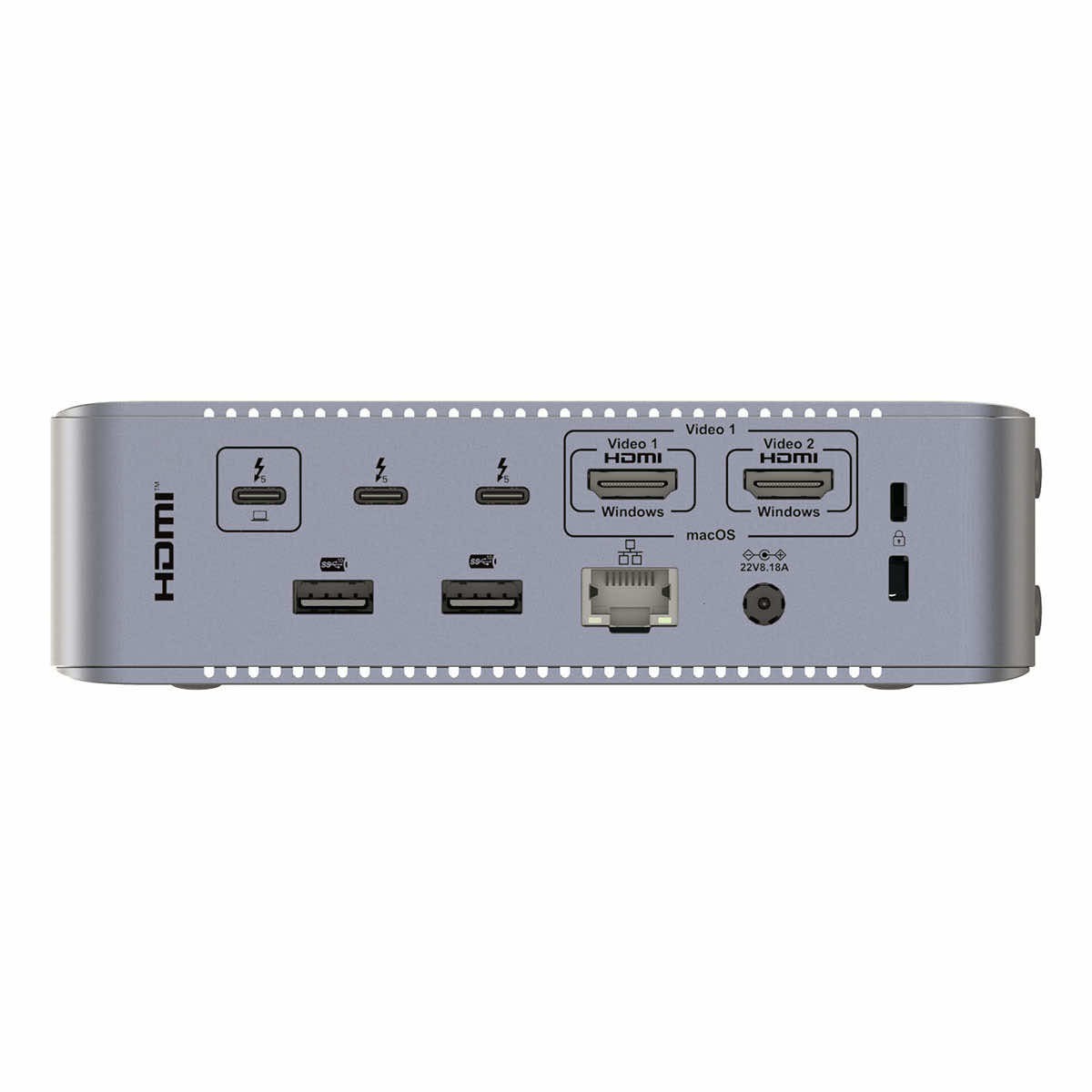

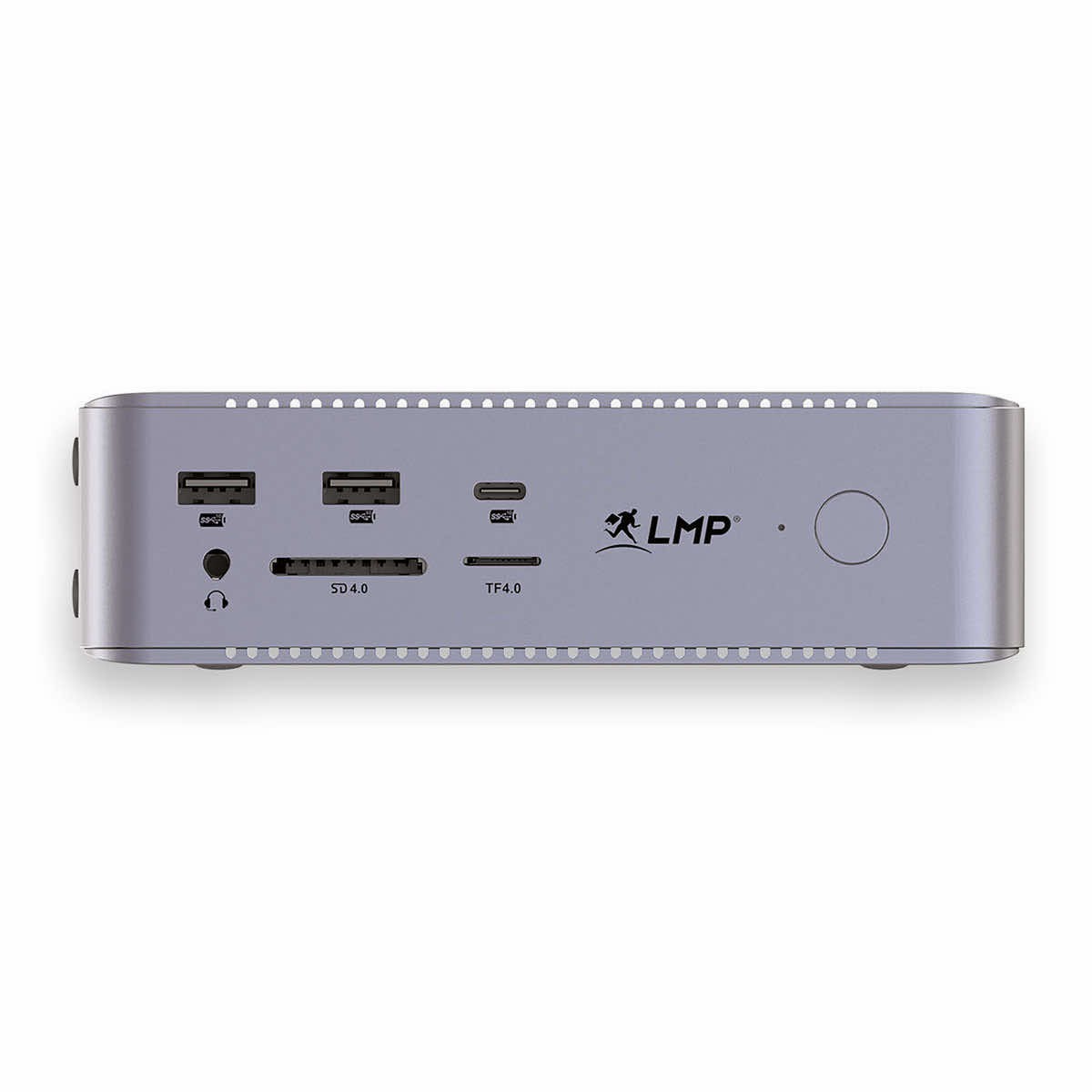

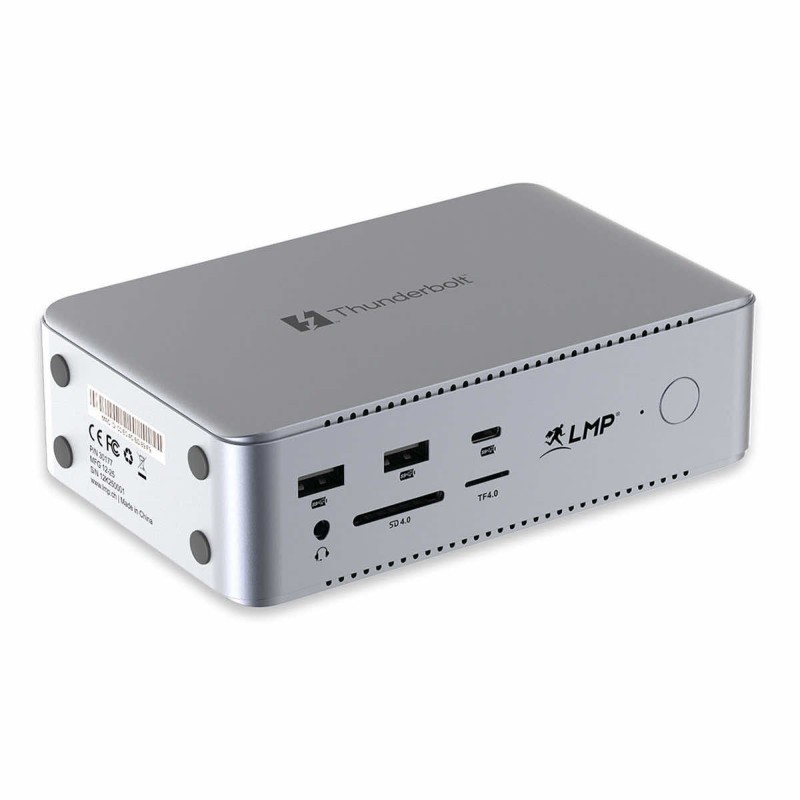

Besides the ulta-fast Thunderbolt 5 (USB-C) ports that can transfer data up to 80 Gbps, the docking station includes four USB-A and an additional USB-C port with transfer rates up to 10 Gpbs. Two USB-A ports support BC1.2 (1.5A/7.5W) for charging smartphones or accessories. Additional USB ports provide further connectivity options for peripherals and storage devices. The USB ports are conveniently located on the front and rear side so the cable clutter is minimized.

A 2.5 Gbps Ethernet port (RJ45) provides fast wired network access and supports features such as auto-negotiation and Wake On LAN. The docking station also includes dual SD/TF 4.0 card readers and a 3.5 mm combo audio jack for input and output. A Kensington Security Slot allows the enclosure to be secured against removal.

The included 180W power adapter supplies power to the docking station and can provide pass-through power via Thunderbolt 5 to the host (laptop) with up to 140W (Power Delivery 3.1).

Key features

• Thunderbolt 5 docking station (compatible with USB4 and Thunderbolt 3, 4 & 5 ports)
• 14 ports for maximum workflow

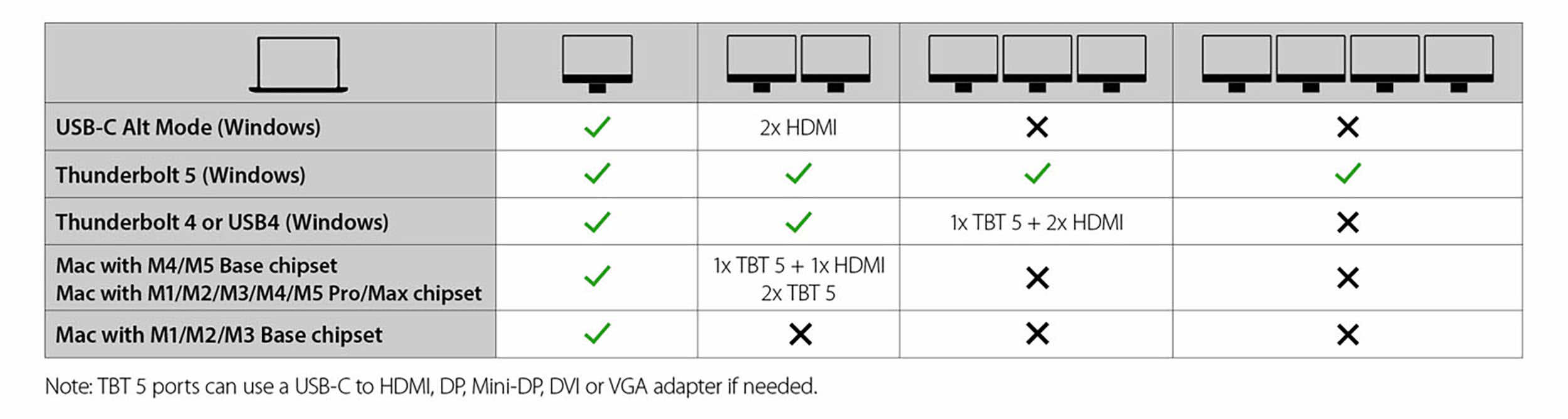

• Supports two external monitors with up to 8K@60 Hz via Thunderbolt 5 & HDMI (macOS) or up to four monitors (Windows OS)
• 2x Thunderbolt 5 ports (80 Gbps, 30W+15W), 2x HDMI 2.1, 1x RJ45 (2.5G), 2x SD/TF 4.0, 1x 3.5 mm audio in/out
• 5x USB ports: 2x USB-A 10 Gbps with BC 1.2 (1.5A), 2x USB-A 10 Gbps, 1x USB-C 10 Gbps
• Offers Power Delivery 3.1 (up to 140W) to host computer
• SD & microSD 4.0 card reader up to 312 Mbps
• Includes Thunderbolt 5 cable (0.8 m)
• Elegant aluminum design
• Horizontal or vertical position

Technical specifications

• Connection type: Backward compatible with USB4 & Thunderbolt 3/4 Thunderbolt 5
• Video ports: 2x HDMI 2.1 (up to 4K@60 Hz), 2x Thunderbolt 5 (up to 8K@60 Hz, DP Altmode)
• Data ports: 1x USB-C 3.2 Gen2 (10G), 2x USB-A 3.2 Gen2 (10G, BC 1.2 1.5A), 2x USB-A 3.2 Gen2 (10G), 2x Thunderbolt 5 (up to 8K@60 Hz, DP Altmode)
• Network ports: 1x 2.5 Gbps Ethernet (10/100/1000/2500 Mbps)
• Audio ports: 1x Audio In & Out (3.5 mm Combo Jack, 24-bit/192 kHz)
• Card reader: 2x SD/TF 4.0 card reader (312 Mbps)
• Color: Space Gray
• Material: Aluminum
• Power supply: External 180W DC power supply, 100-240 V input
• Package content 3-prong CH cable, 3-prong EU cable, LMP ThunderDock TB5 8K 14 Port, Thunderbolt 5 cable, Power supply
• Notes: May generate heat during operation
• Not compatible with Apple USB SuperDrive
• Supports dual 8K external displays depending on host capabilities
• Unmount external storage devices before disconnecting power or host
