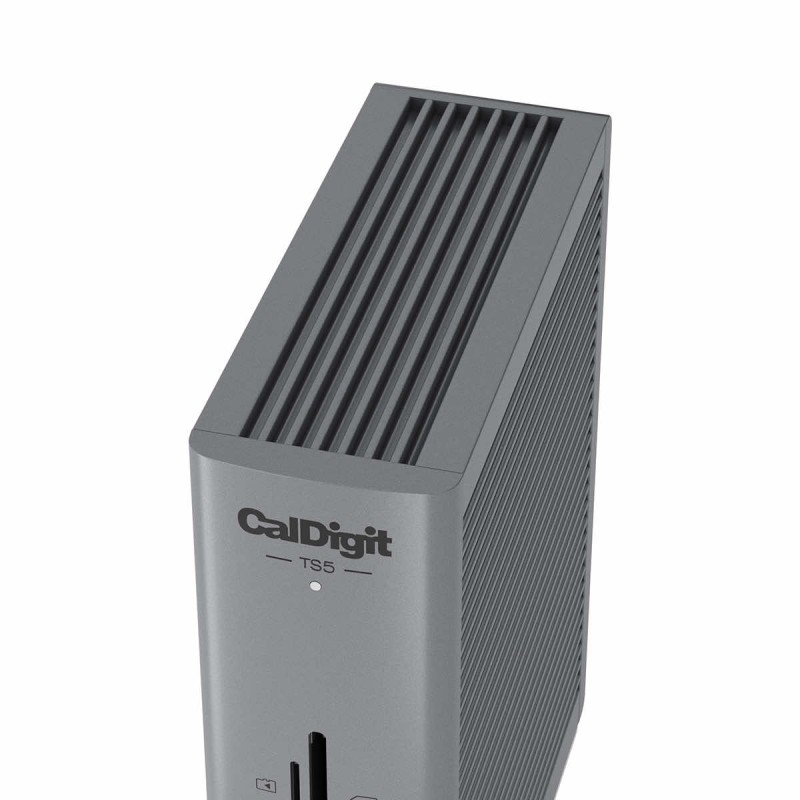

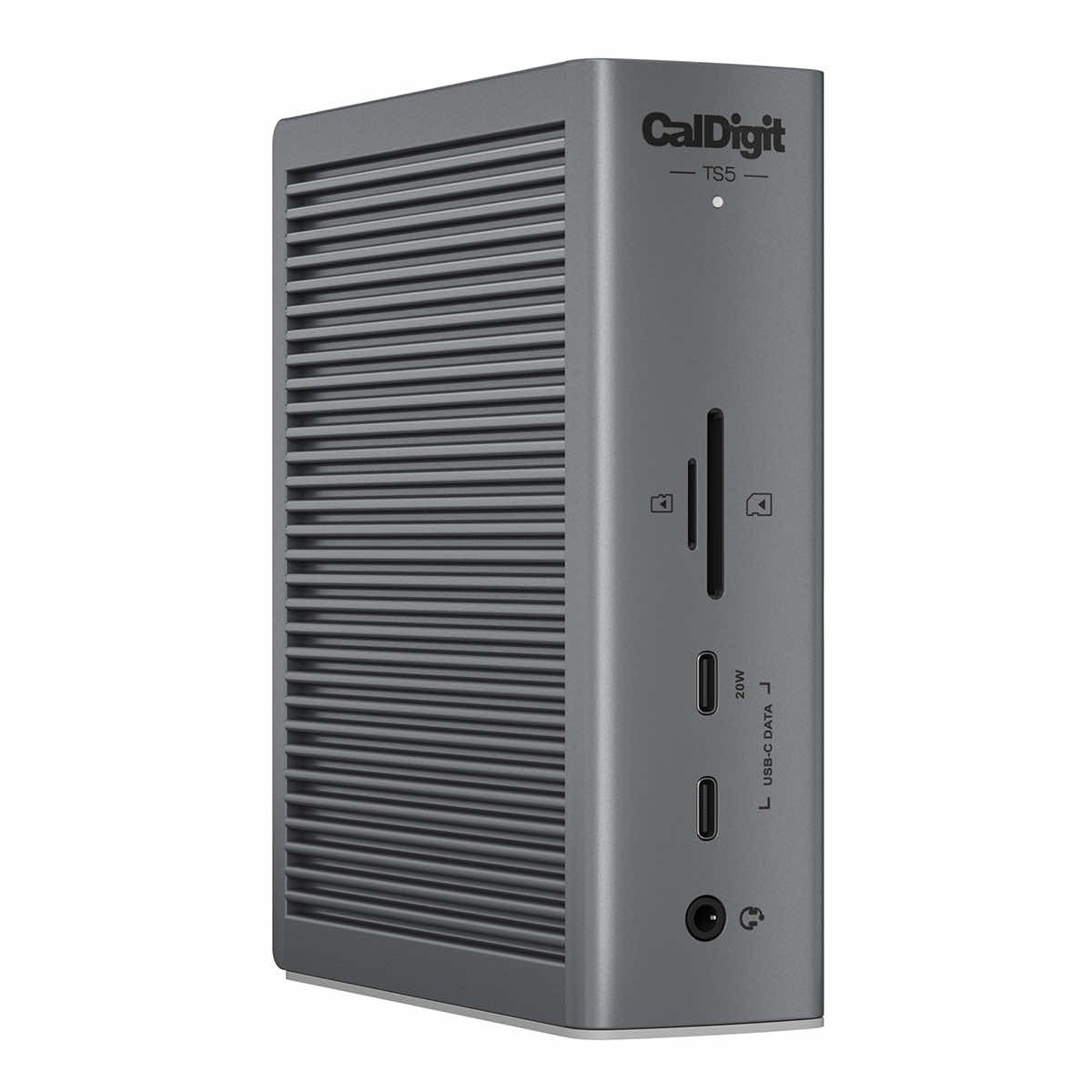

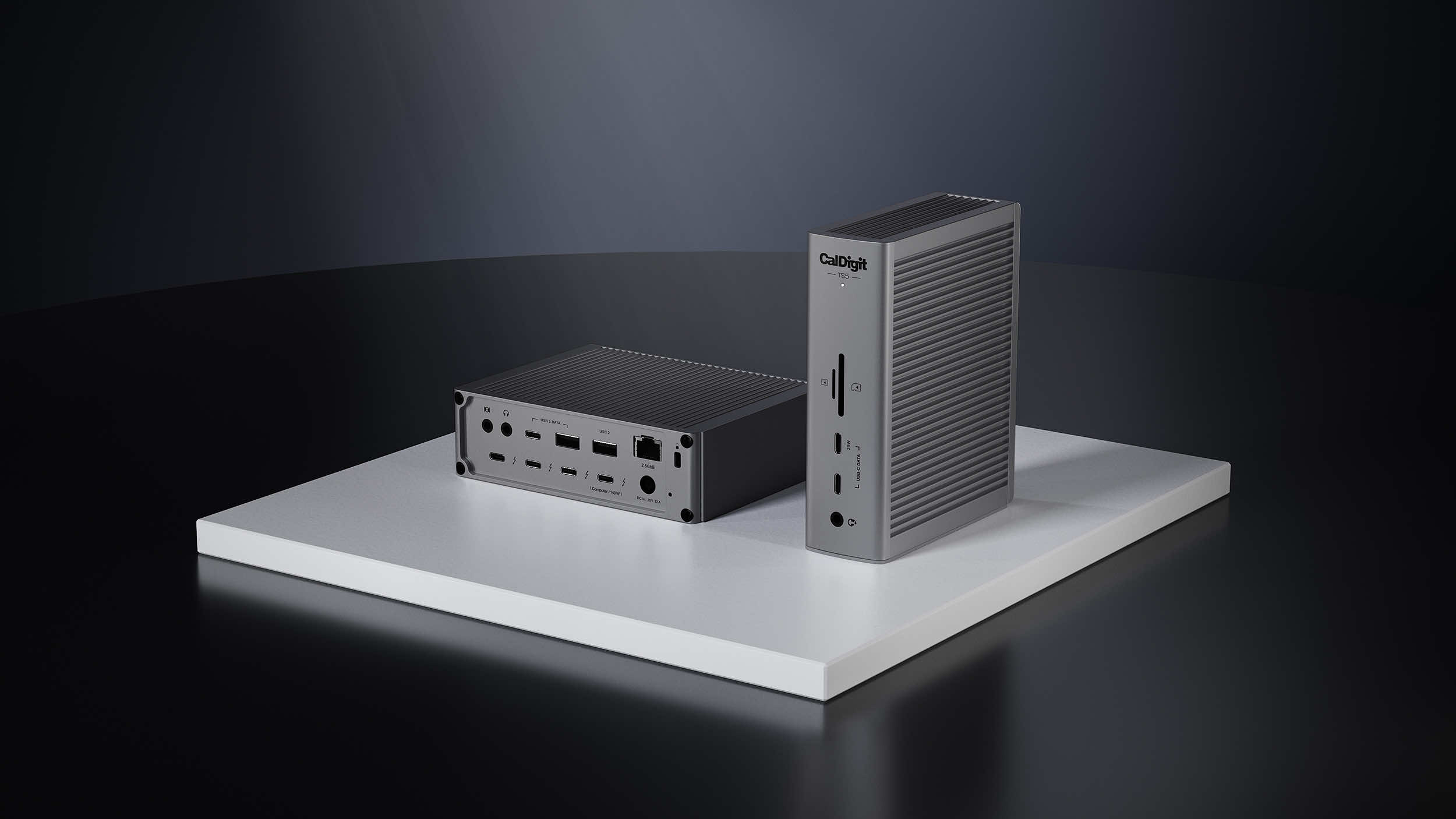

CalDigit TS5 15-port Thunderbolt 5 docking station

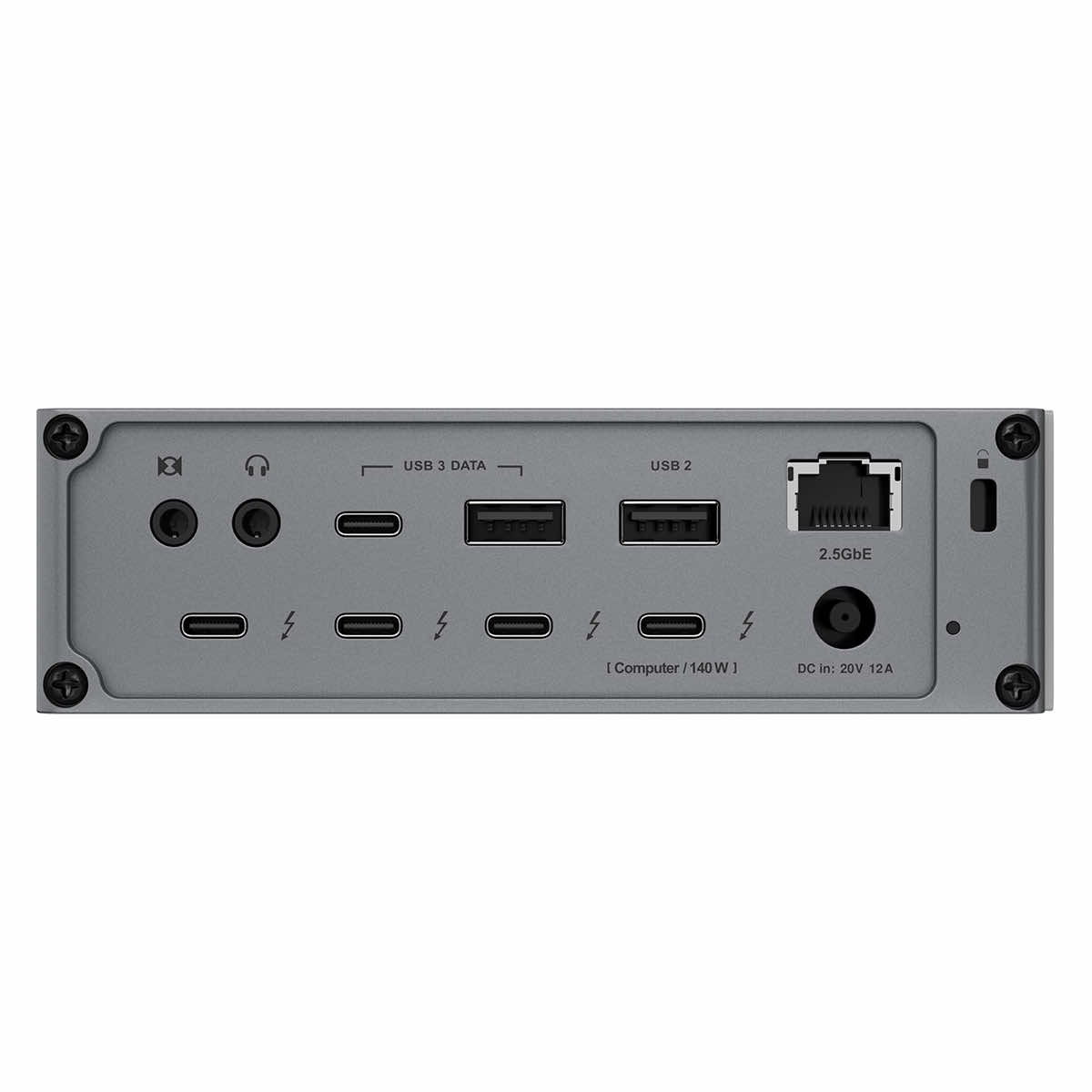

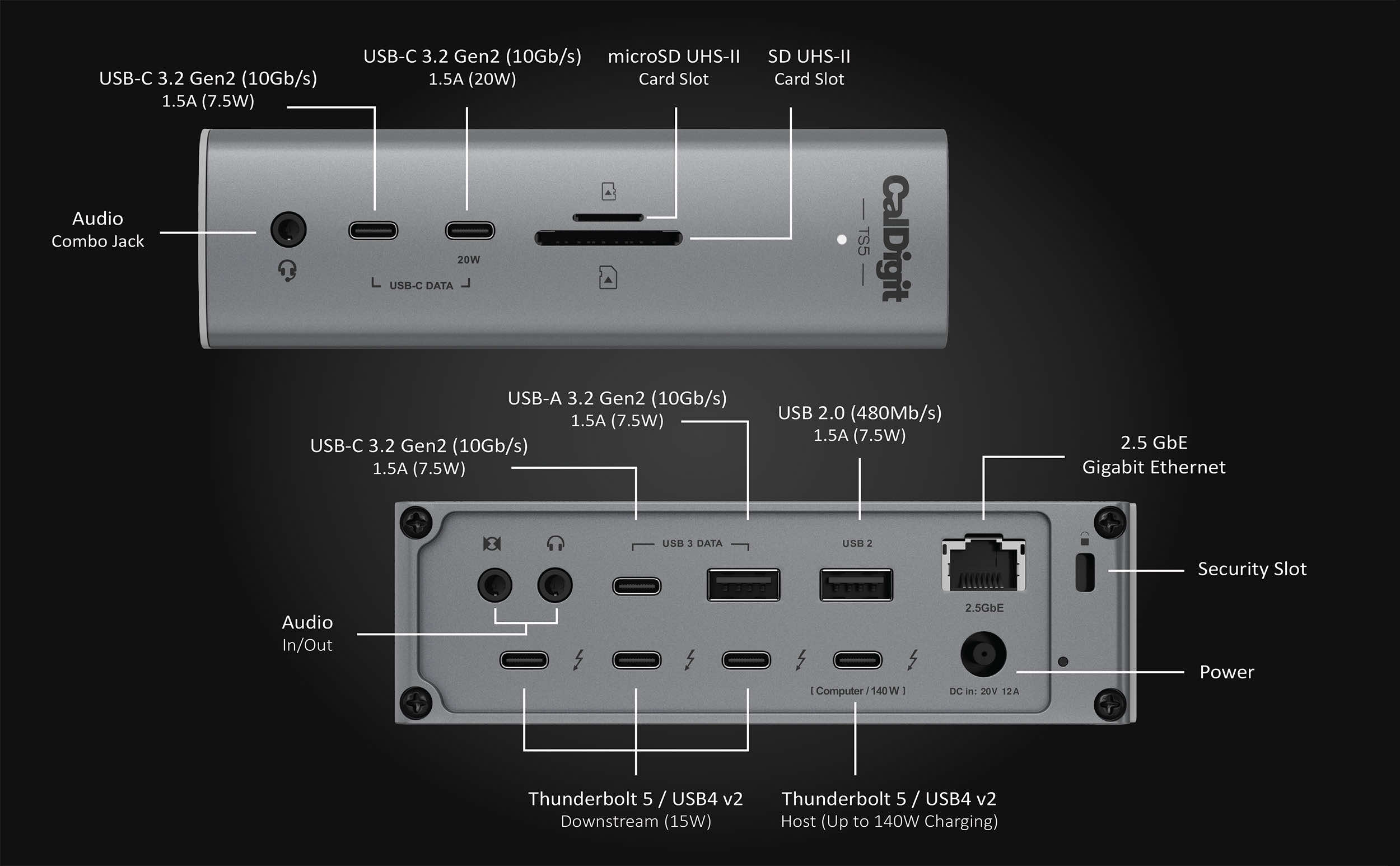

CalDigit TS5 All About Ports

The CalDigit TS5 was designed from the ground up with connectivity in mind. It comes equipped with the essential ports to take your work to the next level.

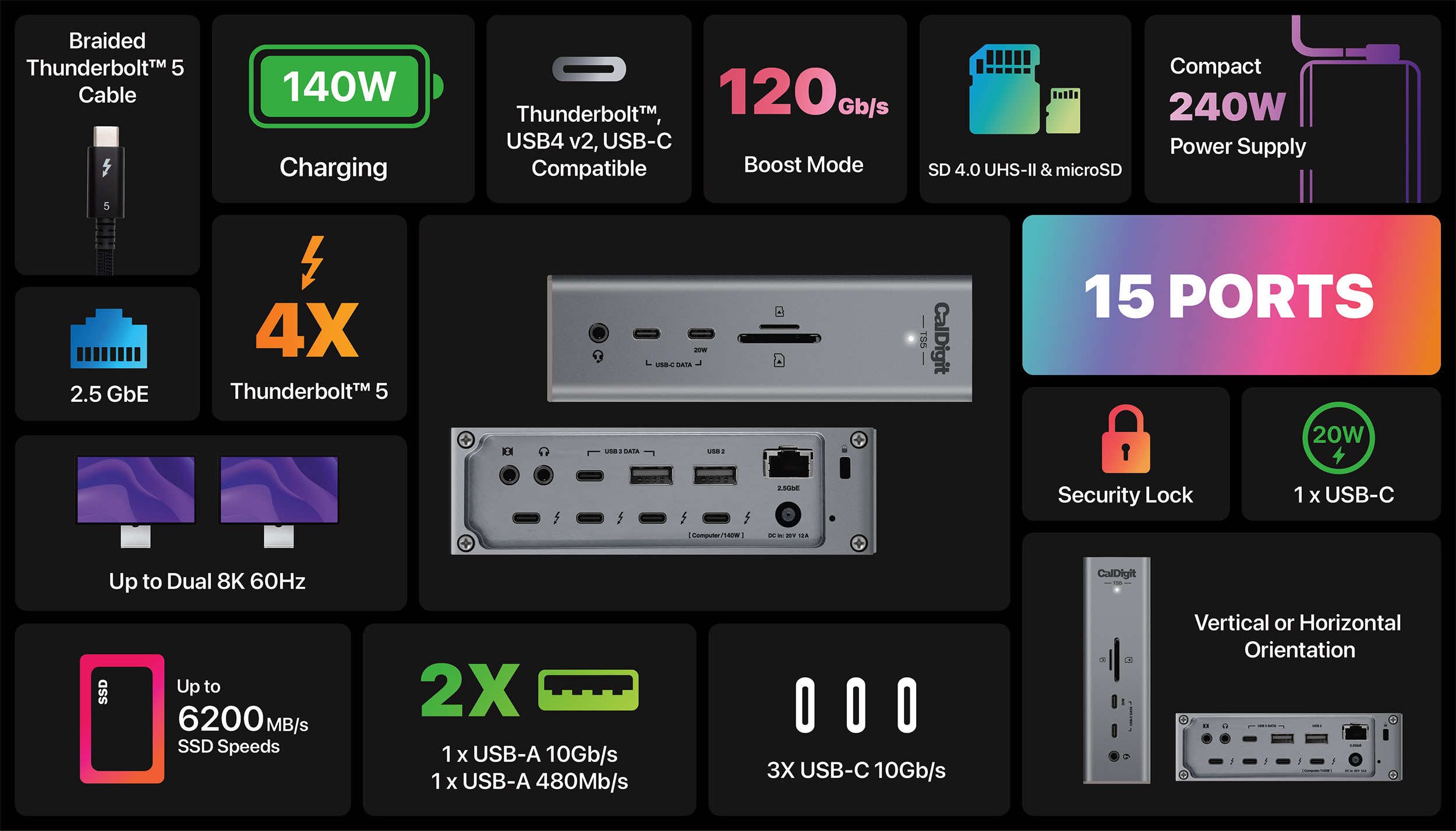

This docking station has a total of 15 ports, including four Thunderbolt 5 80 Gb/s ports. In addition to all these connectivity options, the CalDigit TS5 charges your laptop with up to 140 W of power.

Big on Ports.

Delivering 15 ports, all of which can be used at the same time, this dock packs all the ports most of us would ever need.

Get Connected

The TS5 is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, USB4 v2, and USB-C host computers.

• M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max & M1/M2/M3 Ultra Mac¹
• M1/M2/M3/M4 Mac¹
• Thunderbolt 5 PC
• Thunderbolt 4 PC
• Thunderbolt 3 Mac
• USB4 & USB4 v2 PC
• Intel Thunderbolt 3 Mac¹
• USB-C Mac or PC
• Thunderbolt iPad²
• Thunderbolt Chromebook

140W Power Delivery

The TS5 provides up to 140W power delivery for even the most demanding laptops. This makes it ideal for laptops like the 16″ MacBook Pro with M4 Pro or M4 Max chips which require 140W.

Whilst many other Thunderbolt 5 docks state that they can charge at up to a certain wattage, they actually include an insufficient power supply. These docks will allocate host power based on how many devices are connected to them. Some of the host power will move to newly attached devices, thereby reducing the power delivery.

Rest assured that the CalDigit TS5’s power supply will always provide the full 140W power delivery, and will never drop that performance even when new devices are connected to the TS5.

For laptops or tablets that require less than 140W, the TS5 will only supply the wattage required by your device.

Thunderbolt 5

The TS5 features four 80Gb/s bi-directional Thunderbolt 5 ports, which are double the performance of Thunderbolt 4.

The PCIe performance of the the Thunderbolt ports have been doubled from the previous generation to 64Gb/s PCIe 4.0. This is ideal if you are intending on connecting high performance SSDs or RAID devices to the TS5. This powerful dock will support transfer speeds up to 6,200MB/s.

5 Powerful USB Ports

The TS5 features 5 USB ports in order to attach multiple accessories to the dock*.

Four of the USB ports on the TS5 offer 10Gb/s performance, and one of the USB-A ports provides USB 2.0 performance for keyboards or mice.

3 Monitors on Windows

Thunderbolt 5 allows for 3 external monitors to be connected to a Windows Thunderbolt 5 host computer that supports it. Connect three monitors to the downstream Thunderbolt 5 ports

2.5 Gigabit Ethernet

The TS5 features a 2.5 Gigabit Ethernet port for outstanding performance.*

2.5GbE is 2.5x faster than traditional Gigabit Ethernet, and is becoming the new standard for routers, switches, and NAS devices.*

Of course you can use the 2.5GbE port on the TS5 with traditional 1GbE Ethernet devices.

Tablets & Phones

Connect the TS5 to your Thunderbolt iPad, or Windows Thunderbolt tablet, and take your workflow to the next level.

The TS5 is also compatible with USB-C Tablets and iPhones.

SD & microSD 4.0 UHS-II

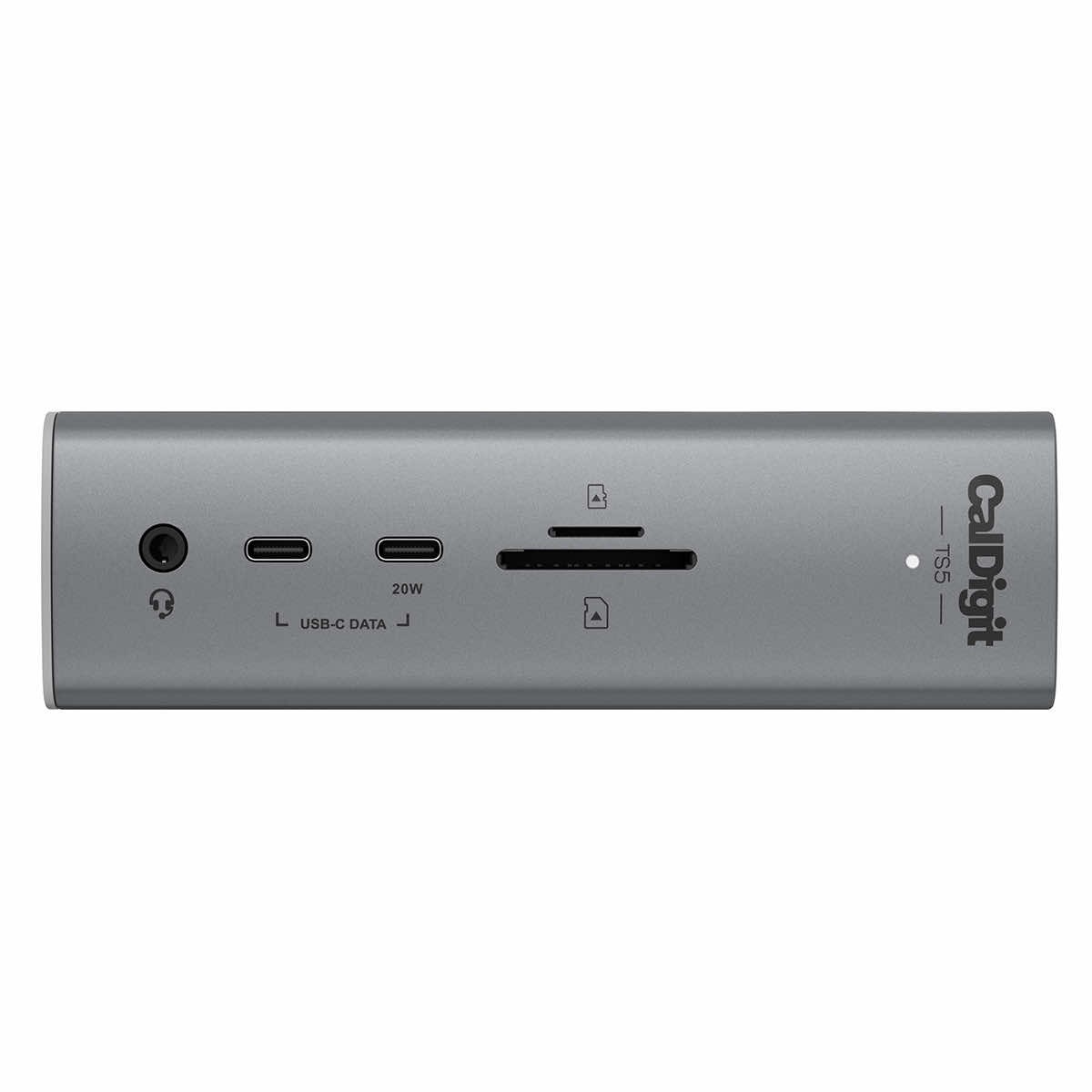

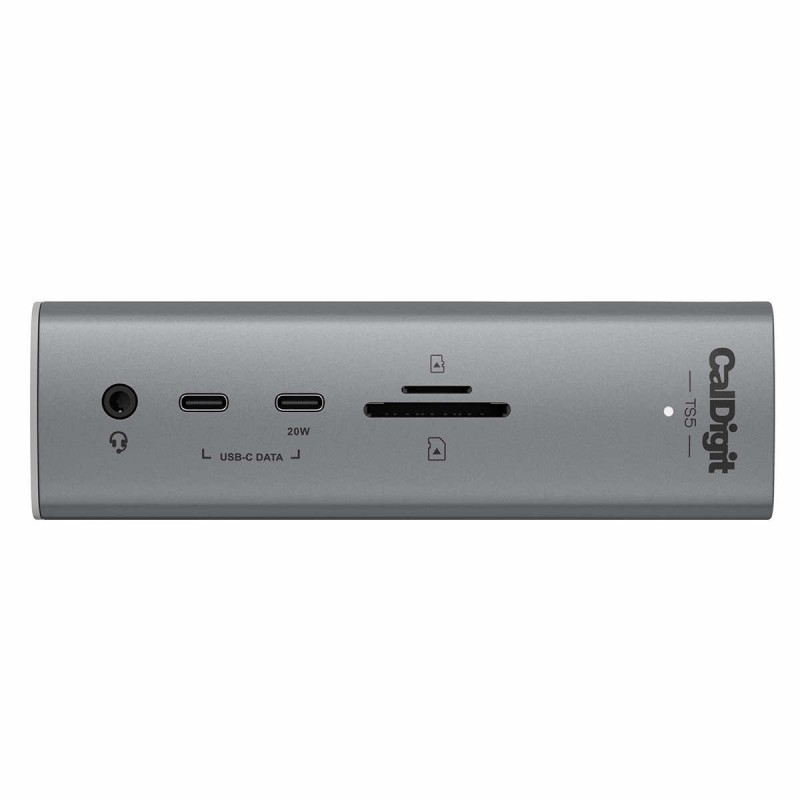

The TS5 features both microSD and SD card readers on the front of the device for easy access. Both ports offer UHS-II performance and can be used at the same time.

8 Offline Charging Ports

All of the USB 10Gb/s ports and all of the Thunderbolt ports on the TS5 provide offline charging. 8 Ports in total.

This function allows those specific ports the ability to charge your USB devices, such as phones and tablets, even when the TS5 is not connected to a host device.
