The Wavlink WL-UG75PD5-3H2D2 docking station uses the latest chipset based on DisplayLink technology, which offers excellent compatibility with a wide range of devices capable of running DisplayLink software. It features two DisplayPort 1.4++ ports and three HDMI ports, and supports up to two 8K displays or five 4K displays. A USB-C interface is used to connect the computer, which can charge the connected device with up to 100 W of power. Two USB-C ports and three USB Type-A ports support data transfer at 10 Gbps. Additionally, the Wavlink WL-UG75PD5 -3H2D2 is equipped with one 2.5 Gb/s RJ45 network port and one 3.5 mm combo jack. Thanks to DisplayLink technology and fast additional interfaces, the Wavlink WL-UG75PD5-3H2D2 docking station offers exceptional convenience.
WavLink 13-in-1 Universal DisplayLink Dock 2x8K DP | 5x 4K Display | 2,5GbE LAN | 5x USB 10 Gbs | 100W PD
Przedłużona ochrona serwisowa EasyProtect®
Zyskaj nawet 3 lata dodatkowej ochrony dla swojego sprzętu
The Wavlink WL-UG75PD5-3H2D2 docking station uses the latest chipset based on DisplayLink technology, which offers excellent compatibility with a wide range of devices capable of running DisplayLink software. It features two DisplayPort 1.4++ ports and three HDMI ports, and supports up to two 8K displays or five 4K displays. A USB-C interface is used to connect the computer, which can charge the connected device with up to 100 W of power. Two USB-C ports and three USB Type-A ports support data transfer at 10 Gbps. Additionally, the Wavlink WL-UG75PD5 -3H2D2 is equipped with one 2.5 Gb/s RJ45 network port and one 3.5 mm headphone jack. Thanks to DisplayLink technology and fast additional interfaces, the Wavlink WL-UG75PD5-3H2D2 docking station offers exceptional convenience.
Key features of the Wavlink WL-UG75PD5-3H2D2 docking station with DisplayLink technology

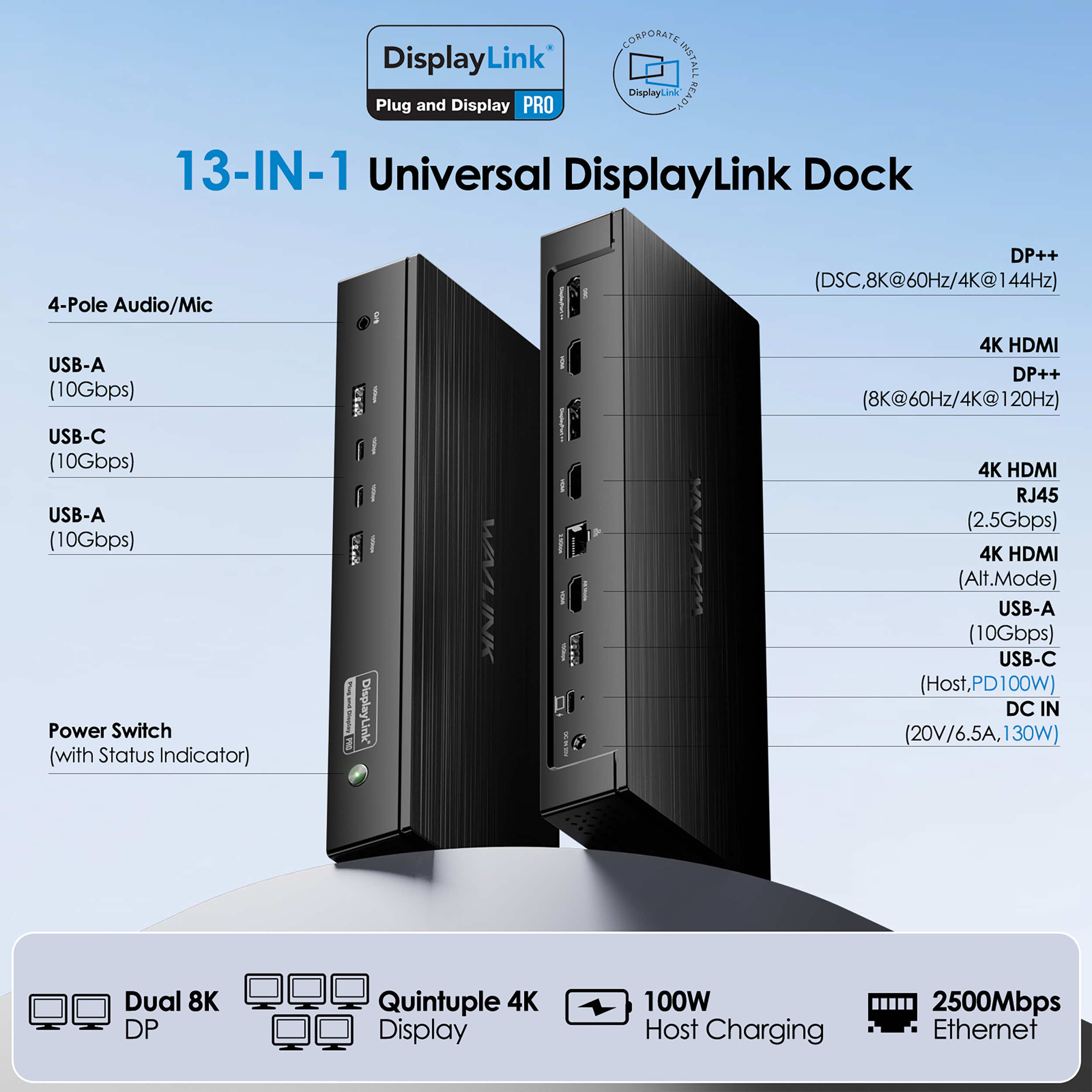

- 2x DisplayPort 1.4++ ports and three HDMI ports, supporting up to two 8K displays or five 4K displays,
- 1x USB Type-C UFP port supporting USB Power Delivery, enabling charging of connected devices at up to 100 W,
- 3x USB 3.1 Type-A ports (10 Gbps) for fast connectivity with USB-A devices.
- 2x USB 3.1 Type-C ports (10 Gbps) for fast connectivity with USB-C devices.
- 1x Ethernet port supporting speeds up to 2.5 Gbps (10/100/1000/2500 Mbps).
- 1x Kensington lock slot for device security.
- 1x audio/microphone combo port
Maximum resolution of connected monitors
The docking station supports up to five 4K monitors – 3840/4096 x 2160 @ 60 Hz – or two 8K monitors – 7680/8192 x 4320 @ 60 Hz
Depending on the ports, the docking station can be connected to computers via a USB-C or USB-A connector, regardless of whether it is USB 3.2, 3.0, or 2.0
Technical Specifications
- Connection to computer: USB-C port; includes a 100 cm Type-C cable
- Plug & Play: A DisplayPort driver is required for monitor connection; other functions support Plug & Play technology
- Power supply for connected host: via USB (USB Power Delivery) Supports USB PD 3.0 with up to 100 W
- USB ports: 2 x USB 3.1 Type-C 10 Gbps, 3 x USB 3.1 Type-A 10 Gbps Solution: PL5512 Video ports: 2 x DisplayPort 1.4++, 3 x HDMI
- Audio solution: integrated 4-pole TRRS headphone jack: SSS1700
- Ethernet Speed: 1x RJ45 2.5 Gb/s RTL8156B
- LED: 1 x Power LED
- Button: ON/OFF button to turn the docking station on and off
- Security: Kensington lock
- Power Supply: 1x DC20V/6.5A 130 W (brick-type)
- Operating systems: Microsoft Windows 10/11, Apple Mac OS 11 or later, ChromeOS, Linux, Android
- Dimensions: 240 x 81.3 x 29.5 mm
- Certifications: FCC, CE, ROHS
