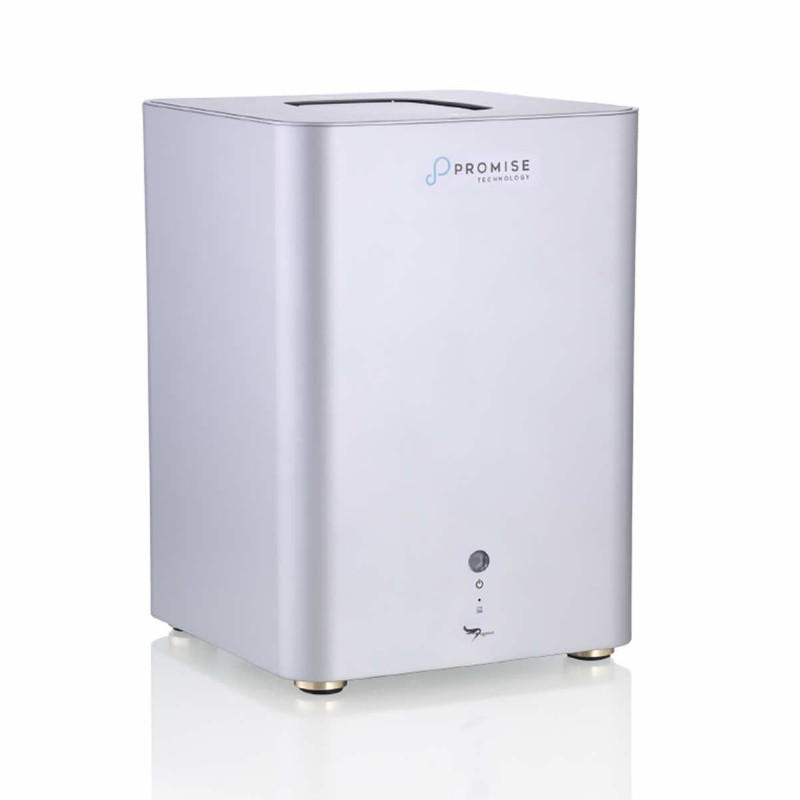

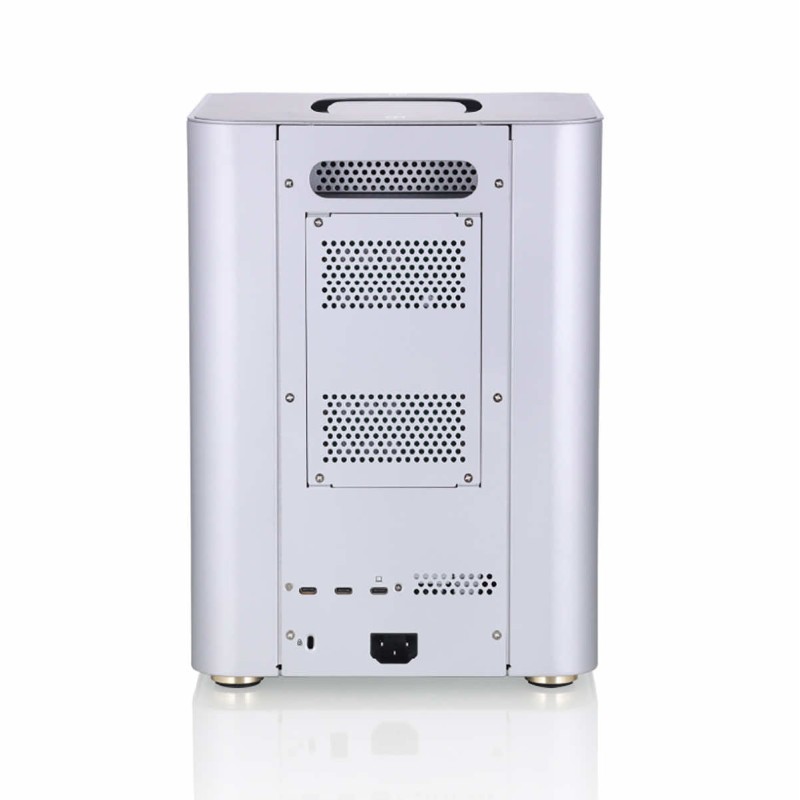

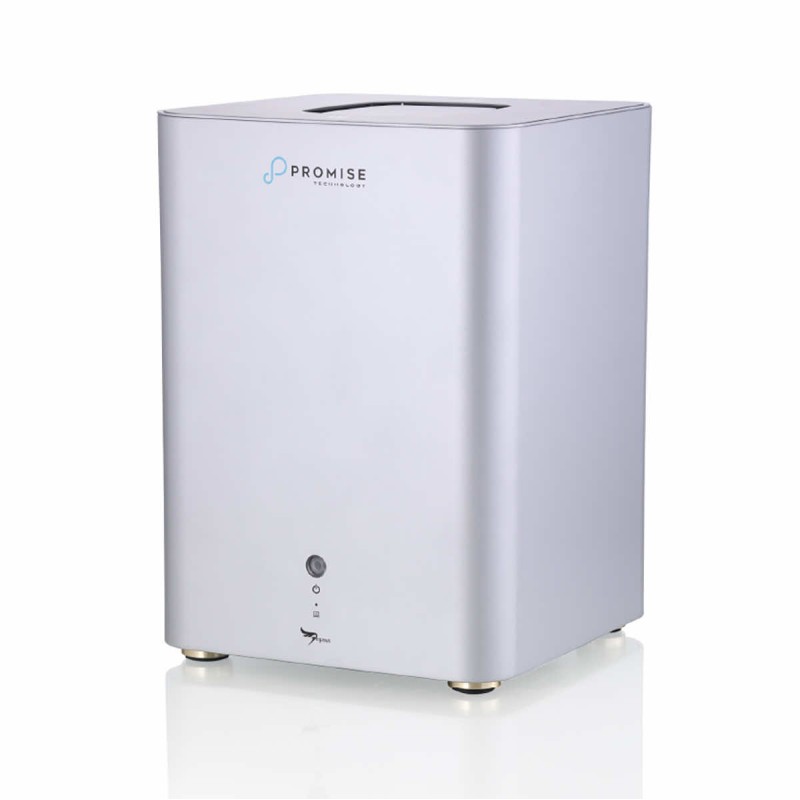

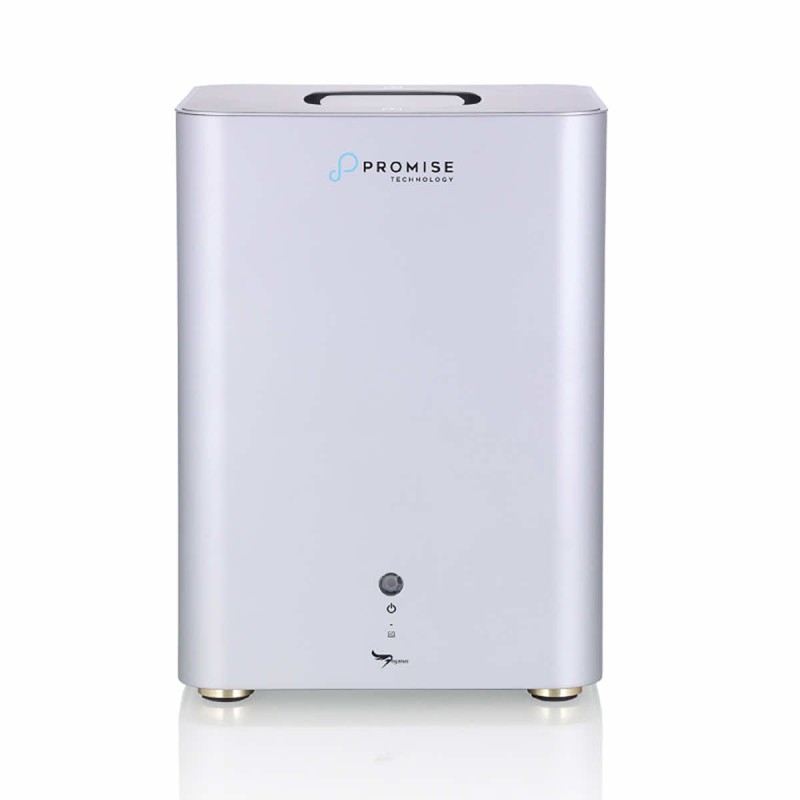

Promise Pegasus5 R12 Pro Thunderbolt 5 12x 4TB 48TB Hardware RAID

The Pegasus5 R12 Pro is a next-generation hybrid storage platform designed for digital content creators. With Thunderbolt™ 5 technology, a compact 12-bay design, and the proven PromiseRAID engine with Predictive Data Migration (PDM), it ensures a smooth and reliable workflow in a quiet and compact solution.

For professionals who demand even more, the Pegasus5 R12 Pro offers a hybrid 12-and-4-bay configuration with HDDs and NVMe SSDs, throughput of up to 6,000 MB/s, and advanced RAID flexibility—designed specifically for 8K editing, special effects (VFX) rendering, and advanced production environments.

In addition to HD/4K/8K video editing, the Pegasus5 R12 Pro is ideal for storing and editing audio, digital graphics, and photography files, as well as for any other applications your imagination can conceive. The 80 Gb/s Thunderbolt™ 5 interface delivers speeds of 6,000 MB/s.

The innovative, new, compact 12-bay design of the Pegasus5 R12 Pro allows for easy access to the hard drive for quick drive replacement. The Pegasus5 R12 operates quietly on your desk and is designed for easy portability.

The Pegasus5 R12 Pro provides up to 288 TB of storage on HDDs and up to 32 TB of high-speed storage on NVMe drives. The HDDs utilize the PromiseRAID hardware RAID engine. PromiseRAID is the core technology of the PROMISE Pegasus line, known for its storage performance and data security.

The very high capacity of the hard drive comes with an increased risk of failure. The Predictive Data Migration (PDM) feature, available exclusively in PromiseRAID systems, periodically analyzes storage media to predict potential drive issues and automatically takes corrective action before a drive failure occurs.

Key Features

• Thunderbolt™ 5 Technology
• Thunderbolt™ 5 technology provides a high bandwidth of 80 Gb/s and data transfer speeds of up to 6,000 MB/s.
• Desktop Design with 12 + 4 Bays
• The new design with 12 SATA HDD bays features an elegant and compact form factor, delivering the highest capacity density and high performance.
• Equipped with twelve 24 TB HDDs, the Pegasus5 R12 series provides up to 288 TB of capacity.

4K/6K/8K Editing

The optimized Thunderbolt™ 5 ecosystem delivers the highest resolution for editing environments with 4K, 6K, and 8K monitors.

PromiseRAID

All Pegasus devices, including the Pegasus5 R12 series, are equipped with the PromiseRAID engine, which provides a key technical advantage over competing systems.

Eco-Friendly Technology Inside

The Pegasus5 R12 series inherits the excellent power management features of PROMISE storage systems. If the host computer enters sleep mode, is shut down, or the Thunderbolt™ connection is interrupted, the Pegasus5 R12 series enters power-saving mode.

Technical Specifications

• Model: Pegasus5 R12 Pro
• 12x 4TB HDDs - 48TB RAID-0
• Four NVMe M.2 SSD bays
• 12-bay tower enclosure
• Supported drives: 12 3.5" SATA hard drives + 4x NVMe PCIe M.2 SSDs
• Maximum capacity: 288 TB (12 x 24 TB hard drives) + 32 TB NVMe SSDs
• Interface type: Thunderbolt™ 5 at 80 Gb/s or USB4 v1/v2 (with PCIe tunneling support)
• Ports: 3 Thunderbolt™ 5 ports (1 upstream, 2 downstream)
• External Monitor A Thunderbolt™ 5 downstream port supports up to three 4K monitors, two 6K monitors, or one 8K monitor
• Power 85 W (Thunderbolt™ host and USB4 host)
• Port Type USB-C Type-C
• RAID Flexibility RAID 0/1/5/6/10/50/60 (HDD only)
• Performance Up to 3000 MB/s
• Hot Spare* Yes
• Max. LUNs 128
• Hot Swap* Yes
• Supported Operating Systems Windows 11 / macOS 15 and later
• Management Tool WebPAM 5.0, CLI
• Additional Features Promise plug-in for Adobe® Premiere® Pro, Adobe® Photoshop®
• Product Features Intelligent cooling, Drive SMART Health Polling
• Dimensions (H x W x D, mm) 318 x 227 x 227
• Weight 16.0 kg
• Power Supply AC 100–240 V with automatic range selection, 50–60 Hz, 500 W
• Temperature Range Operating: 5° ~ 35° C, Storage: -40° ~ 60° C
• Humidity Operating: 10% ~ 95% non-condensing, Storage: 5% ~ 95% non-condensing
• EMC Standards: FCC, CE; Safety: cTUVus, CB
• Environmental Certifications: ErP/EuP, RoHS, WEEE
• Warranty: 3-year standard warranty, optional extended warranty and on-site parts replacement program (PROMISE ServicePlus).
• Technical Support: PROMISE eSupport portal available 24 hours a day, 7 days a week (support.promise.com); optional technical support via phone and email available 24 hours a day, 7 days a week.
