The fourth generation of ATTO FastFrame Ethernet cards deliver unmatched performance, the industry's lowest latency and the versatility needed to support the most demanding and complex ecosystems. Supporting line speeds up to 25 GbE and latencies as low as 1 μs, ATTO N422 FastFrame SmartNICs can be used throughout the entire data center, from the core to the farthest ends in the network.

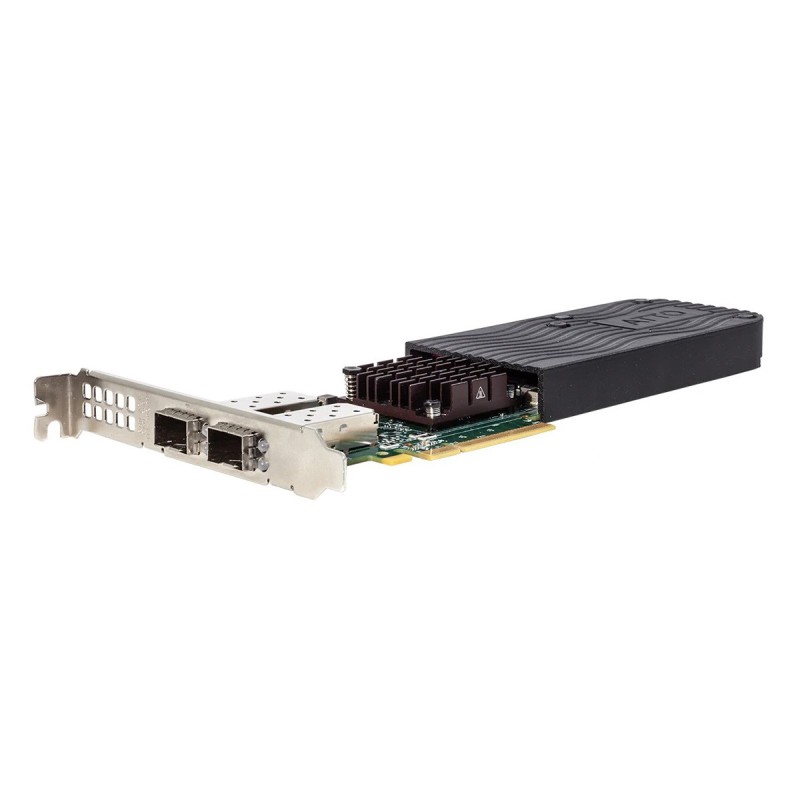

ATTO FastFrame AIR N422 Dual 25GbE SmartNIC x8 PCIe 3.0 2x LC SFP28
FFRM-N422-AIR
25/10Gb dual-port Ethernet SmartNIC with Advanced Heat Baffling Technology. SFP28 module(s) included. Designed to perform in any environment, especially in workstations with limited airflow. A perfect upgrade from in-box 10Gb Ethernet for superior performance to move data faster in latency-sensitive applications. Note: this product does not currently support macOS.
25/10GbE Interface:
- Guaranteed bandwidth and low-latency services
- Energy efficient Ethernet
- Optimized for use inside workstations
- Advanced Heat Baffling Technology with whisper-quiet operation
Offloads (reduce CPU Overhead):
- RDMA over Converged Ethernet
- TCP/UDP/IP stateless offloads
Protocol Support
- MPI, Platform MPI
- TCP/UDP
- iSER
- SMB RDMA
- Support for MSI and MSI-X
- Supports Jumbo frames up to 9K
Host Bus Specifications:
- x8 mechanical and electrical PCIExpress 3.0 interconnect
Driver Support:
- Windows 11, 10, Windows Server 2016, Windows Server 2012, FreeBSD
- Latest kernels of RHEL, SLES
Other
- 3 year standard product warranty
- RoHS compliant
- This SKU includes: ATTO N422-AIR FastFrame Ethernet adapter, (2) SFP28 optical transceivers, low profile bracket, ATTO corporate brochure, getting started guide
