Areca ARC-8050T5U-12E Thunderbolt™ 5 80 Gb/s Enclosure | USB 3.2 RAID 12x SAS/SATA

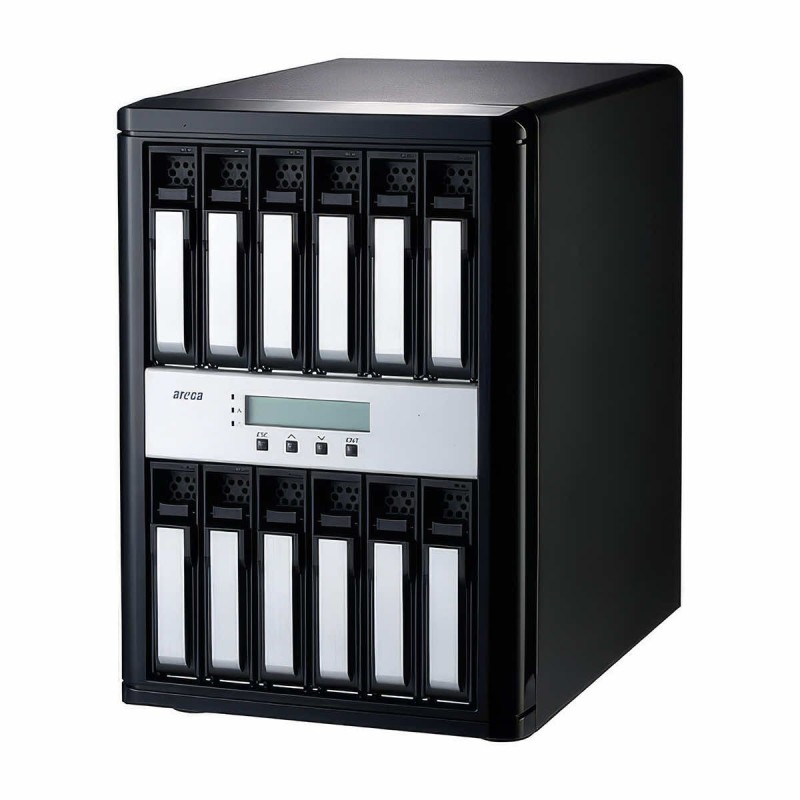

Areca ARC-8050T5U-12E – 12-bay Thunderbolt™ 5 hardware RAID array for SAS and SATA drives

Maximum capacity and performance for professional studios and data centers

The Areca ARC-8050T5U-12E is the highest-capacity desktop RAID array in the ARC-8050T5U series, designed for professionals who demand the highest performance, data security, and scalability. Equipped with 12 drive bays for 12 Gb/s SAS or 6 Gb/s SATA drives, an enterprise-class hardware RAID controller, and a Thunderbolt™ 5 interface, it offers bandwidth of up to 80 Gb/s, and with Bandwidth Boost technology, up to 120 Gb/s.

The ARC-8050T5U-12E model was designed for professional editing of 4K, 6K, and 8K content, television production, post-production studios, data archiving, and business applications requiring massive capacity and reliability.

Key Features

• Thunderbolt™ 5 with a bandwidth of up to 80 Gb/s
• Bandwidth Boost technology up to 120 Gb/s
• 12 drive bays for 12 Gb/s SAS and 6 Gb/s SATA drives
• Professional enterprise-class hardware RAID controller
• High-performance 1.6 GHz Dual-Core ARM A15 processor RAID-on-Chip
• 8 GB of DDR4 ECC cache
• two Thunderbolt™ 5 (USB-C) ports
• compatibility with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac), and USB 3.2 Gen 2
• Mini SAS HD SFF-8644 (4-lane) expansion port for connecting additional drive bays
• DisplayPort 2.1 output
• Support for up to 6 Thunderbolt devices via daisy chain
• Hardware-based data encryption
• Support for SED (Self-Encrypting Drives)
• Built-in Gigabit Ethernet RJ-45 port for web browser-based management, SNMP, and email notifications.

Thunderbolt 5 – Full Performance for Professional Applications

Thanks to the Thunderbolt™ 5 interface, users get twice the bandwidth of Thunderbolt 3 and 4, enabling simultaneous work with multiple 4K and 8K media streams, fast transfer of massive data libraries, and support for high-resolution monitors.

The array is compatible with both computers equipped with Thunderbolt 5 and devices with only a USB-C (USB 3.2 Gen2) port, ensuring great flexibility in use.

Enterprise-Class Hardware RAID

At the heart of the ARC-8050T5U-12E is a high-performance RAID controller equipped with a 1.6 GHz Dual-Core ARM A15 processor and 8 GB of DDR4 ECC memory, which performs all RAID operations independently of the computer.

Supported RAID levels:

• RAID 0
• RAID 1
• RAID 1E (10)
• RAID 3
• RAID 5
• RAID 6
• RAID 30
• RAID 50
• RAID 60
• JBOD
• Single Disk

The device also offers advanced enterprise-class features, such as:

• Online RAID Level Migration,
• Online Capacity Expansion,
• Auto Rebuild,
• Background Initialization,
• Array Roaming,
• SMART monitoring,
• and automatic notifications of disk failures.
• Scalable up to 256 disks

The ARC-8050T5U-12E model is equipped with a Mini SAS HD SFF-8644 (4-lane) expansion port that allows for connecting additional disk shelves with SAS expanders.

The system can be expanded to up to 256 drives, making it ideal for environments with ever-increasing storage space requirements.

Designed for Apple Mac and Windows computers

The array has been optimized to work with:

• Apple Mac Studio
• Mac Pro
• MacBook Pro
• Mac mini
• Apple Silicon computers (M1, M2, M3, M4, and newer)
• Windows computers equipped with Thunderbolt™ 5

Thanks to its USB-C compatibility, it can also work with computers not equipped with Thunderbolt.

Technical Specifications

• Model: Areca ARC-8050T5U-12E
• Number of bays: 12
• Host interface: 2 × Thunderbolt™ 5 (USB-C)
• Bandwidth: up to 80 Gb/s (120 Gb/s Bandwidth Boost)
• Supported drives: 12 Gb/s SAS, 6 Gb/s SATA
• RAID Controller Dual-Core ARM A15 1.6 GHz RAID-on-Chip
• Cache 8 GB DDR4-2666 ECC
• Expansion Port 1 × Mini SAS HD SFF-8644 (4-lane)
• Management Port 1 × Gigabit Ethernet (RJ-45)
• Supported RAID levels: 0, 1, 1E, 3, 5, 6, 30, 50, 60, JBOD, Single Disk
• Video output: DisplayPort 2.1
• Daisy chain up to 6 Thunderbolt devices

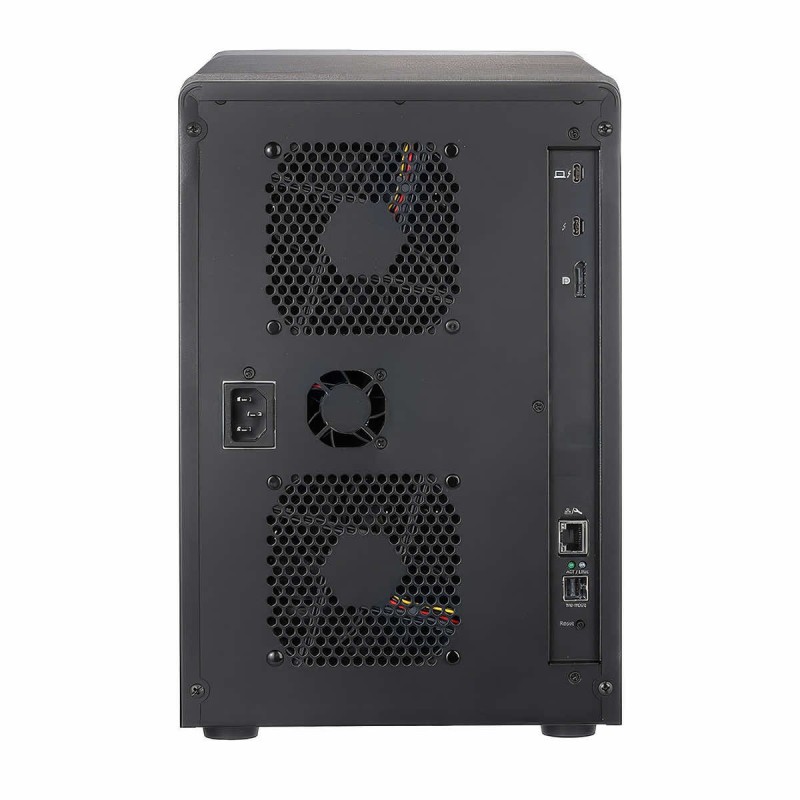

• Cooling: 2 × 90 mm fans + 1 × 40 mm fan
• Power Supply: Built-in 400 W
• Dimensions: 206 × 310 × 290 mm
• Weight: approx. 9.5 kg
• Operating System: macOS 15.3 or later, Windows 11 23H2 or later; USB – system-independent
• Included: Active Thunderbolt™ 5 cable

Ideal Applications

The Areca ARC-8050T5U-12E is perfect for:

• professional editing of 4K, 6K, and 8K content,
• film and television studios,
• post-production,
• photography and graphic design,
• archiving large data sets,
• DIT environments,
• enterprise-class backup,
• data centers,
• and business applications requiring high performance, security, and scalability.
