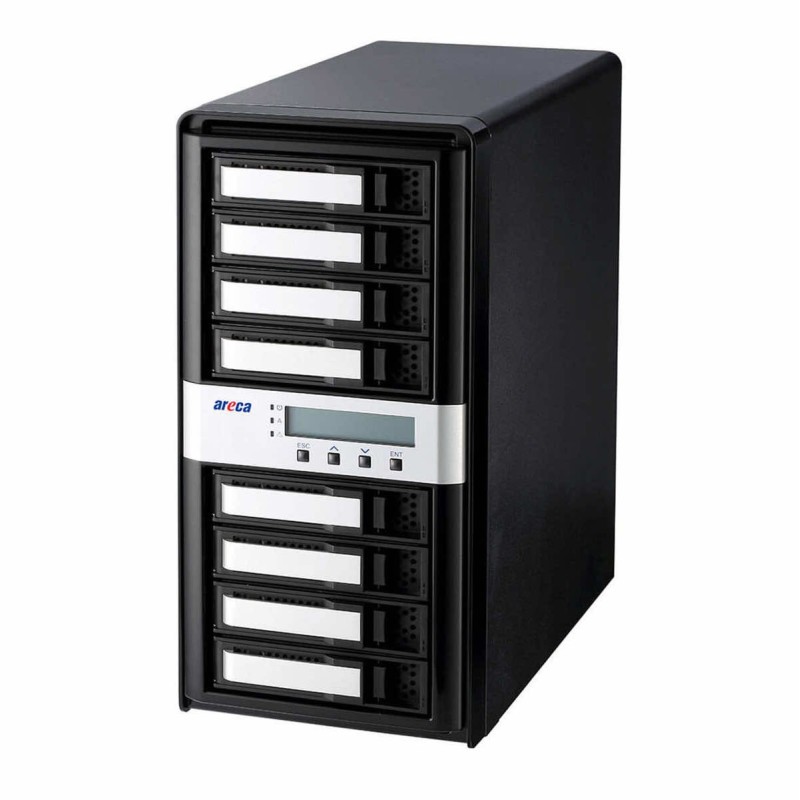

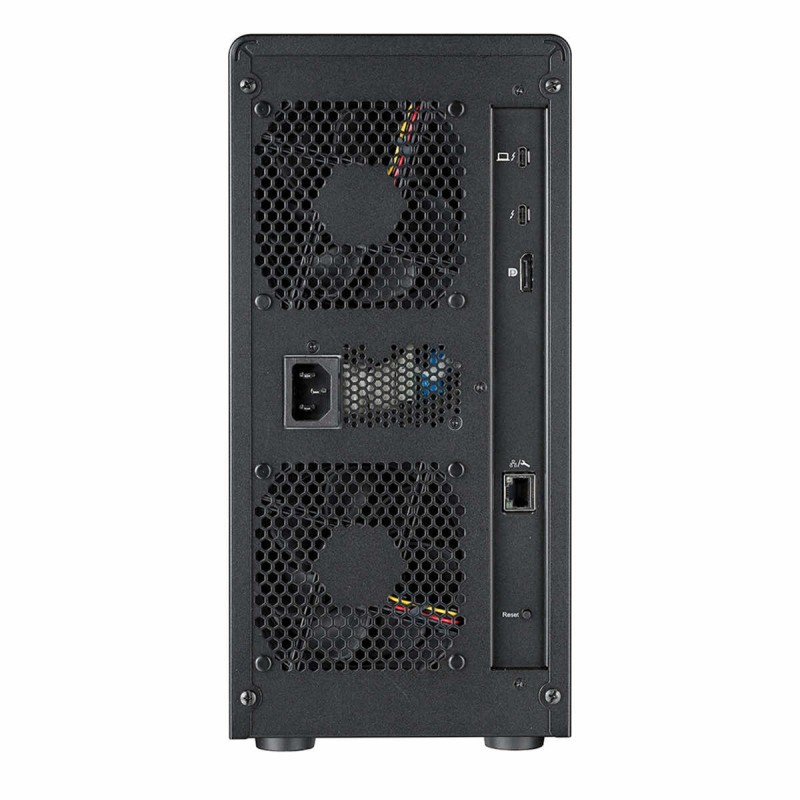

Areca ARC-8050T5U-8E Thunderbolt™ 5 80 Gb/s Enclosure | USB 3.2 RAID 8x NVMe (U.2/U.3)/SAS/SATA

Areca ARC-8050T5U-8N – 8-bay Thunderbolt™ 5 hardware RAID array with support for NVMe, SAS, and SATA

Next-generation professional Thunderbolt™ 5 RAID array for 4K, 6K, and 8K content creators

Areca ARC-8050T5U-8N is an advanced 8-bay enterprise-class RAID array equipped with the latest Thunderbolt™ 5 interface and a hardware RAID controller featuring Tri-Mode technology, enabling simultaneous support for NVMe U.2/U.3, 12 Gb/s SAS, and 6 Gb/s SATA drives. With a bandwidth of 80 Gb/s—and up to 120 Gb/s in Bandwidth Boost mode—the device delivers the performance required for professional editing of 4K, 6K, and 8K content, rendering special effects, and working with massive data libraries.

The ARC-8050T5U-8N model is designed for users of Apple Mac computers and high-performance Windows workstations who demand the highest performance, data security, and configuration flexibility.

Key Features

• Thunderbolt™ 5 with up to 80 Gb/s bandwidth
• Bandwidth Boost technology up to 120 Gb/s
• 8 drive bays supporting:
• NVMe U.2/U.3
• SAS 12 Gb/s
• SATA 6 Gb/s
• enterprise-class hardware RAID controller
• 8 GB of DDR4 ECC cache
• two Thunderbolt™ 5 (USB-C) ports
• compatibility with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac), USB4, and USB 3.2 Gen 2
• DisplayPort 2.1 output with support for two 6K monitors
• Hardware-based data encryption
• Support for SED (Self-Encrypting Drives)
• Configuration via Thunderbolt, Ethernet, or LCD display
• Active Thunderbolt™ 5 cable (120 Gb/s) included.

Thunderbolt 5 – Maximum Performance for Professionals

Thanks to Thunderbolt™ 5, the ARC-8050T5U-8N array offers up to twice the bandwidth of Thunderbolt 3 and Thunderbolt 4 solutions.

This allows for simultaneous:

• editing of 4K, 6K, and 8K content,
• support for two 6K monitors,
• transfer of large files,
• connecting additional Thunderbolt devices via daisy chain,
• charging a compatible laptop via Thunderbolt.

Tri-Mode – Complete Configuration Flexibility

The ARC-8050T5U-8N model utilizes Tri-Mode technology, allowing each of its eight bays to support three types of storage media:

• NVMe U.2/U.3 PCIe
• SAS 12Gb/s
• SATA 6Gb/s

This allows you to create both ultra-fast NVMe arrays designed for video editing and AI workloads, as well as high-capacity SAS or SATA configurations for archiving and long-term data storage.

Enterprise-Class Hardware RAID

At the heart of the device is a modern RAID-on-Chip (ROC) controller equipped with 8 GB of DDR4 ECC memory, which performs all RAID operations in hardware without taxing the computer’s CPU.

Supported RAID levels:

• RAID 0
• RAID 1
• RAID 10
• RAID 3
• RAID 5
• RAID 6
• RAID 30
• RAID 50
• RAID 60
• JBOD
• Single Disk

The array also offers advanced enterprise-class features, such as:

• online RAID level migration,
• capacity expansion without downtime,
• automatic array rebuild,
• hardware-based data encryption,
• and performance optimization for video environments.

Built for Apple Mac and Windows

The Areca ARC-8050T5U-8N is designed for professional users:

• Apple Mac Studio
• Mac Pro
• MacBook Pro
• Mac mini
• Apple Silicon computers (M1, M2, M3, M4, and newer)
• Windows workstations with Thunderbolt™ 5

The array also works with computers equipped exclusively with a USB4 or USB-C (USB 3.2 Gen 2) port, allowing it to be used outside of a Thunderbolt environment as well.

Professional Data Protection

The ARC-8050T5U-8N offers features that enhance data security:

• hardware-based encryption at the controller level,
• support for SED drives,
• ECC cache,
• intelligent power management,
• simultaneous firmware updates for all drives,
• monitoring and configuration via Thunderbolt, Ethernet, or the LCD display.

Technical Specifications

• Model: Areca ARC-8050T5U-8N
• Number of bays: 8
• Host interface: 2 × Thunderbolt™ 5 (USB-C)
• Bandwidth up to 80 Gb/s (120 Gb/s Bandwidth Boost)
• Supported drives: NVMe U.2/U.3, SAS 12 Gb/s, SATA 6 Gb/s
• RAID controller: Hardware RAID-on-Chip (ROC)
• Cache 8 GB DDR4 ECC
• Supported RAID modes: 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, Single Disk
• Video output: DisplayPort 2.1
• Daisy chain up to 6 devices
• Power supply: 300 W
• Cooling: 2 smart fans
• Dimensions: 146 × 302 × 290 mm
• Weight: approx. 6.8 kg
• Operating system: macOS 15.3 or later, Windows 11 (23H2) or later; USB – platform-independent
• Package contents: Active Thunderbolt™ 5 cable (1 m, 120 Gb/s)

Ideal Applications

The Areca ARC-8050T5U-8N is perfect for:

• editing 4K, 6K, and 8K footage,
• film post-production,
• television production,
• photography and graphic design,
• DIT environments,
• AI and machine learning projects utilizing high-speed data storage,
• professional backup,
• data archiving,
• and work with Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, Avid Media Composer, and other applications requiring very high storage performance.
